Sparse Mixture-of-Experts: Geometric Coupling Between Routers and Experts

Summary (Overview)

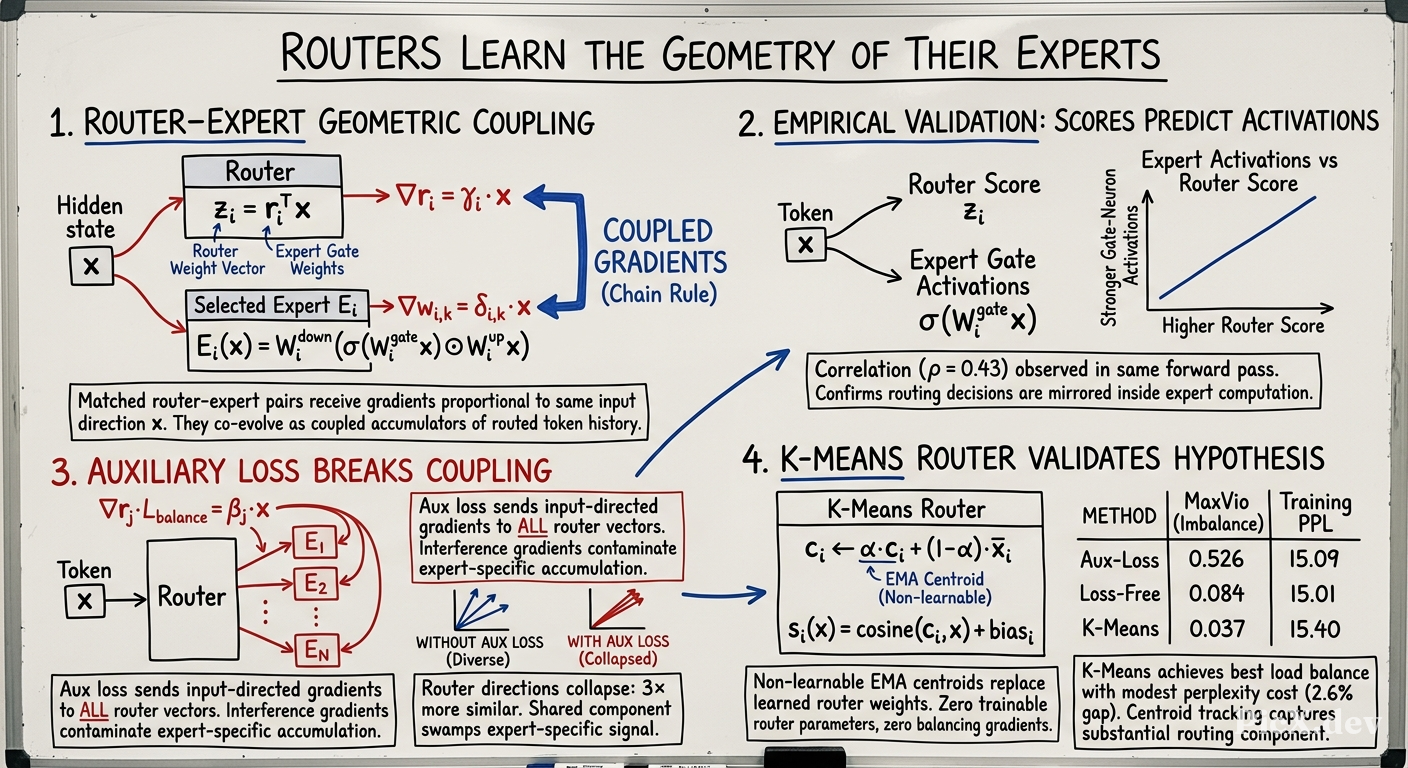

• Core Finding: Router weight vectors and expert input-side weights in Sparse Mixture-of-Experts (SMoE) models develop coupled geometry because both receive gradient updates proportional to the same routed hidden states during training.
• Empirical Evidence: In a 1B SMoE trained from scratch, router scores strongly predict expert gate-neuron activations (correlation ρ = 0.43), confirming that routing decisions are mirrored inside expert computation.
• Auxiliary Loss Effect: Standard auxiliary load-balancing losses break this coupling by injecting global interference gradients into all router weight vectors, making distinct router directions nearly three times more similar (cosine similarity 0.63 vs. 0.18).
• Constructive Test: A parameter-free K-Means router using EMA centroids of routed hidden states achieves the lowest load imbalance (MaxVio = 0.037) with only modest perplexity cost (2.6% increase), demonstrating that centroid tracking captures a substantial component of learned routing.

Introduction and Theoretical Foundation

Background

Sparse Mixture-of-Experts (SMoE) models scale language models efficiently by activating only a fraction of parameters per token. A router network selects K experts per input from N total experts, enabling a division of labor where different experts specialize in different input patterns.

The Routing Mechanism

For a hidden state x, the router computes scores:

$$p = \sigma(\mathbf{z} + \mathbf{m}), \quad \mathbf{z} = W_r \mathbf{x}$$

where $W_r \in \mathbb{R}^{N \times d}$ contains router weight vectors $\mathbf{r}_i$ for each expert $i$, and the SMoE layer combines selected expert outputs:

$$\mathbf{y} = \sum_{i \in \mathcal{T}_K} p_i E_i(\mathbf{x})$$

Experts use gated SwiGLU activations:

$$E_i(\mathbf{x}) = W_i^{\text{down}}\left(\sigma(W_i^{\text{gate}}\mathbf{x}) \odot W_i^{\text{up}}\mathbf{x}\right)$$

Training Challenges

• Representation collapse: Without intervention, routing concentrates on few experts
• Auxiliary load-balancing losses [1, 3, 2]: Add penalties to balance expert utilization but may reduce specialization
• Loss-free methods [7, 4]: Use adaptive per-expert routing biases instead

Methodology

Theoretical Derivation of Geometric Coupling

The paper derives that both router weights and expert input-side weights receive gradient updates proportional to the input direction x:

Expert side (for row $\mathbf{w}_{i,k}$ of $W_i^{\text{gate}}$):

$$\nabla_{\mathbf{w}_{i,k}} \mathcal{L} = \delta_{i,k} \mathbf{x}^{\top} \propto \mathbf{x}^{\top}$$

Router side (for router weight vector $\mathbf{r}_i$):

$$\nabla_{\mathbf{r}_i} \mathcal{L} = \gamma_i \mathbf{x} \propto \mathbf{x}$$

This shared gradient structure means matched router–expert pairs accumulate the same routed token history, creating geometric alignment.

Experimental Setup

• Model: 1B SMoE with 9 layers, hidden size 1024, 64 routed experts, top-K = 6 routing
• Training: OLMoE-mix-0924 dataset, ~50B tokens, AdamW optimizer
• Balancing variants tested: Aux-Loss (Switch-style), Loss-Free (bias-only), Loss-Free + Seq-Aux (DeepSeek-V3 style), K-Means (centroid-based)

K-Means Router Design

Replaces learned router weights with non-learnable EMA centroids:

$$s_i(\mathbf{x}) = \frac{\mathbf{c}_i^{\top}\mathbf{x}}{\|\mathbf{c}_i\|\|\mathbf{x}\|} + b_i$$ $$\mathbf{c}_i \leftarrow \alpha \mathbf{c}_i + (1-\alpha)\bar{\mathbf{x}}_i$$

where $\bar{\mathbf{x}}_i$ is the mean of tokens routed to expert $i$ in the current micro-batch, and $b_i$ uses the loss-free bias update rule.

Empirical Validation / Results

1. Router Scores Predict Expert Activations

• Finding: Monotone relationship between router score and expert gate-neuron activations
• Correlation: ρ = 0.43 (p-value 1.2 × 10⁻⁸¹)
• Significance: These are computed independently in the same forward pass, providing direct functional evidence of coupling

2. Auxiliary Loss Collapses Router Geometry

Pairwise cosine similarities between router weight vectors:

The auxiliary loss makes router directions nearly three times more similar, eroding expert-specific signal.

3. K-Means Router Performance

Key results:

• K-Means achieves the lowest load imbalance (0.037) with zero trainable router parameters
• Only 2.6% perplexity increase over Loss-Free (15.40 vs. 15.01)
• No auxiliary losses or balancing gradients needed

Theoretical and Practical Implications

Theoretical Contributions

1. Gradient-level explanation: Provides the first formal account of why router–expert correlation emerges naturally from backpropagation through SMoE layers
2. Mechanism for load-balancing degradation: Explains why auxiliary losses reduce specialization - they inject global interference gradients that collapse router weight vector diversity
3. Centroid tracking as implicit mechanism: Shows learned routers essentially perform online clustering of routed hidden states

Practical Implications

1. Router design guidance: Auxiliary balancing losses may be counterproductive; bias-only or centroid-based approaches preserve geometric coupling
2. Evaluation framework: Router quality should be assessed not just by load balance but by preservation of router–expert geometry
3. Architecture insights: The success of parameter-free K-Means routing suggests learned routers have significant redundancy, motivating hybrid designs

Conclusion

The paper establishes that router–expert coupling is a fundamental emergent property of SMoE training, arising from shared input-directed gradients. This coupling:

• Is empirically visible in token-level expert activations
• Is fragile under auxiliary load-balancing interventions
• Can be largely recovered through explicit centroid tracking

Future directions:

• Validating coupling at larger scales and different architectures
• Extending activation analysis to other expert weight matrices ($W_i^{\text{up}}$)
• Developing hybrid routers that preserve centroid geometry while closing the perplexity gap
• Using the geometric lens to understand other SMoE pathologies (representation collapse, expert dominance)
