LLaDA2.0-Uni: A Comprehensive Summary

Summary (Overview)

• Unified Architecture for Multimodal Tasks: LLaDA2.0-Uni is a novel unified discrete diffusion large language model (dLLM) that natively supports both multimodal understanding (e.g., VQA, document reasoning) and generation (e.g., image generation, editing) within a single framework.
• Core Technical Innovations: The architecture integrates three key components: 1) a SigLIP-VQ semantic tokenizer for discretizing images, 2) a 16B MoE-based dLLM backbone trained with a block-level masked diffusion objective for unified sequence modeling, and 3) a distillation-optimized diffusion decoder for high-fidelity image reconstruction.
• Strong Benchmark Performance: The model achieves performance on par with specialized vision-language models (VLMs) in understanding tasks and competitive results with state-of-the-art image generation models, while also excelling in editing and complex interleaved generation/reasoning tasks.
• Efficient Inference: The model employs training-free inference acceleration via SPRINT (Sparse Prefix Retention with Inference-time Non-uniform Token Unmasking) and a distilled diffusion decoder, achieving up to 1.6× speedup and 8-step CFG-free image generation.
• Scalable Data and Training Pipeline: The model is supported by a large-scale, carefully curated multimodal dataset and a tailored three-stage training pipeline (vision-language alignment, multi-task pre-training, supervised fine-tuning) that progressively builds its capabilities.

Introduction and Theoretical Foundation

Large language models (LLMs) have expanded beyond text to handle diverse multimodal tasks, primarily categorized into understanding (e.g., visual question answering) and generation (e.g., text-to-image). Traditionally, these are handled by separate specialized models. A unified model offers key benefits: mutual enhancement between understanding and generation, improved deployment efficiency, and unlocking advanced capabilities like interleaved generation and reasoning, moving closer to Artificial General Intelligence (AGI).

Current unified models are predominantly based on autoregressive (AR) architectures, which tokenize images into discrete sequences for next-token prediction. An alternative paradigm is offered by masked diffusion models, which have inherent advantages in parallel decoding and bidirectional context modeling. However, existing unified masked diffusion models (e.g., MMaDA, Lumina-DiMOO) lag behind AR-based models due to architectural limitations: 1) reconstructive VQ tokenizers lack semantic information, harming understanding; 2) excessive image compression degrades generation quality; 3) fully bidirectional modeling is unreliable for text; 4) they assume fixed output lengths.

LLaDA2.0-Uni addresses these limitations by proposing a unified dLLM-based MoE model. Its core innovation is using fully discrete semantic tokens for both understanding and generation. This is achieved via a SigLIP-VQ tokenizer, which converts images into semantic tokens, preserving crucial details for complex reasoning. This unified representation allows both text and images to be optimized under a shared block-level masked diffusion objective within the dLLM backbone, while a dedicated diffusion decoder reconstructs images from the generated tokens.

Methodology

2.1 Architecture Overview

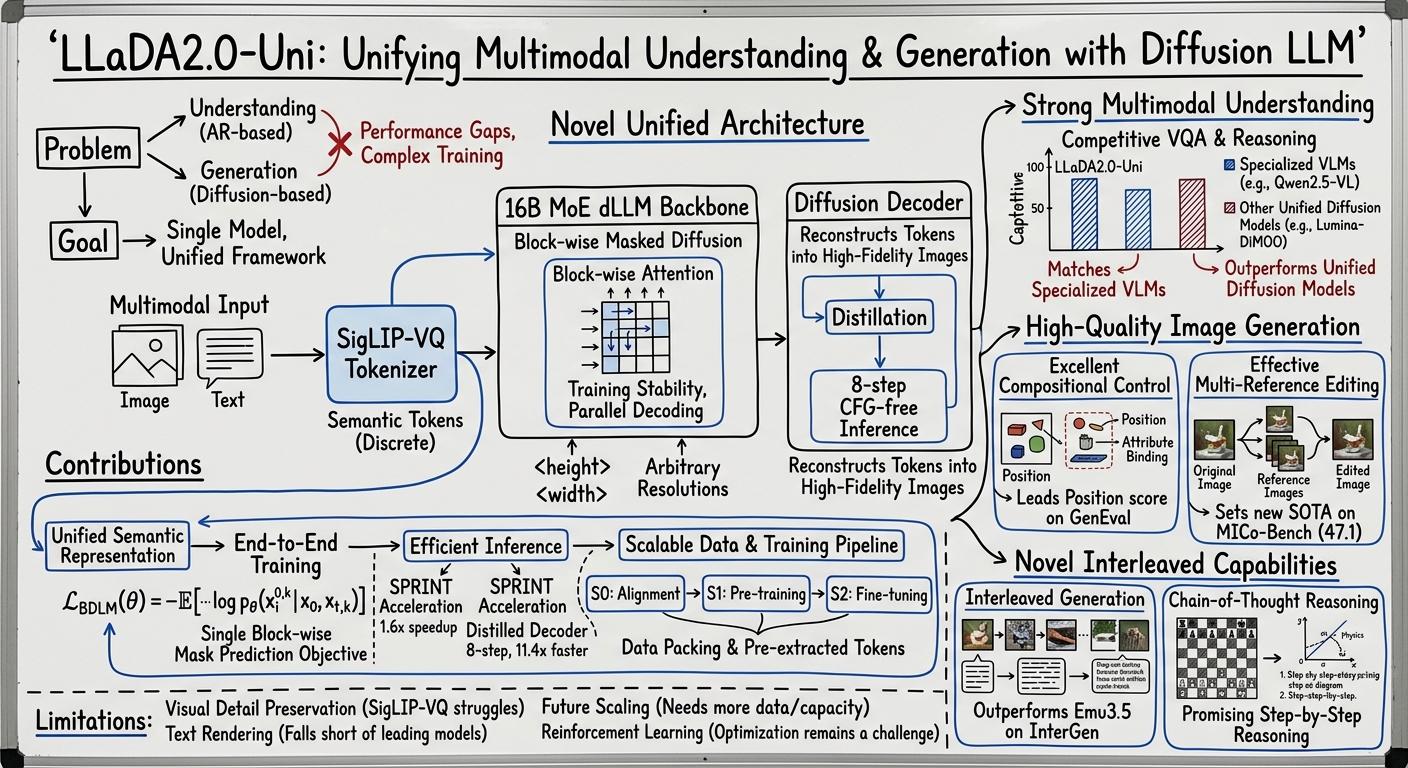

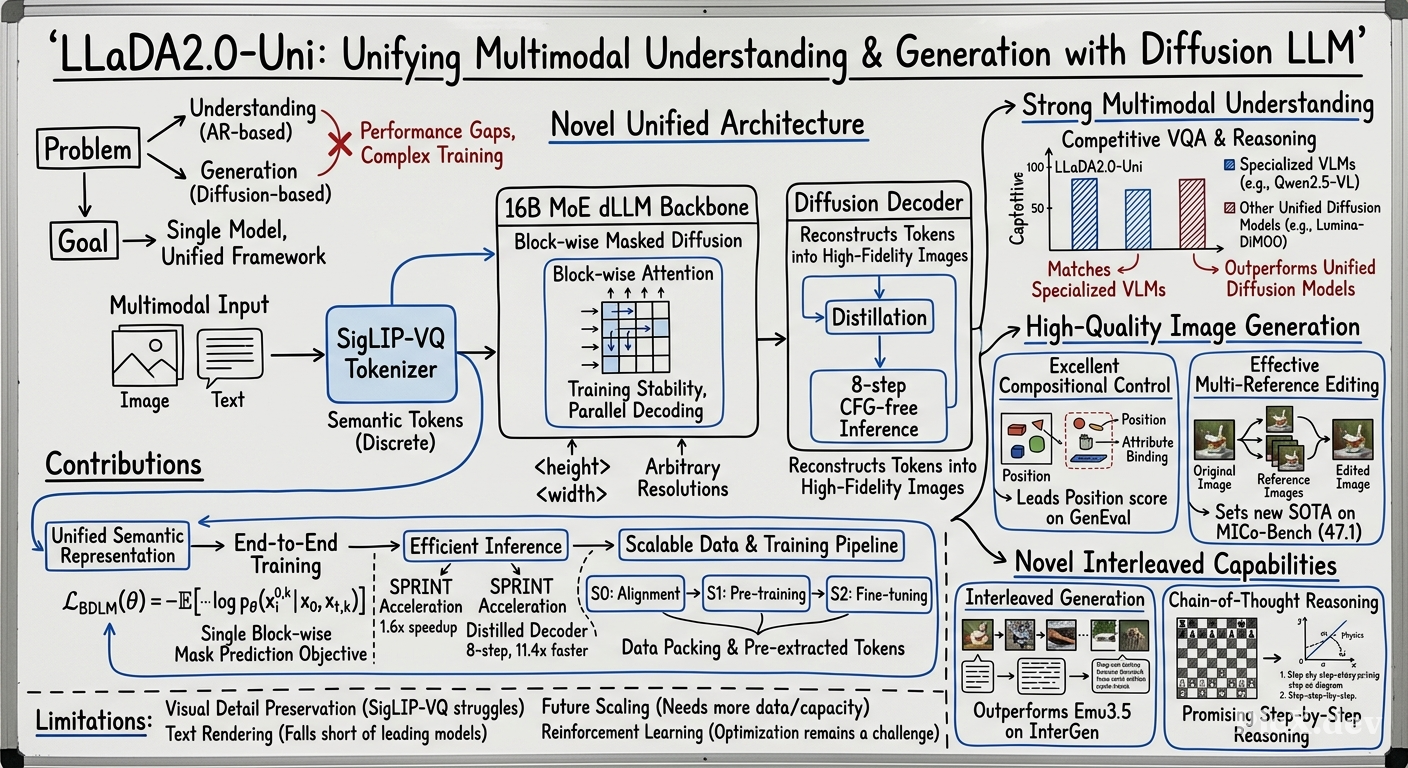

LLaDA2.0-Uni consists of three core components:

1. Semantic Discrete Tokenizer (SigLIP-VQ): Converts continuous images into discrete semantic tokens. It uses a pre-trained SigLIP2-g ViT as a feature extractor and a vector quantizer with a codebook (vocab size 16,384, dimensionality 2,048). Unlike reconstruction-based VQ-VAEs, it is trained on understanding tasks, preserving rich semantics.
2. Diffusion Large Language Model (16B MoE Backbone): Built upon LLaDA-2.0-mini, it processes interleaved sequences of text and visual tokens. Key design choices:
   • Block-wise Attention: Adopted instead of full bidirectional attention to balance parallel decoding speed with training stability, especially for semantically aligned SigLIP-VQ tokens.
   • 1D RoPE with Size Tokens: Uses standard 1D Rotary Position Embedding (RoPE). Special <height> and <width> tokens (e.g., <imgsize 512>) are prepended to the flattened visual sequence to represent 2D spatial information and enable arbitrary resolution handling.
3. Diffusion Decoder: A model built upon Z-Image-Base (6B) that reconstructs high-fidelity images from the semantic tokens generated by the dLLM backbone. It performs 2× super-resolution and is optimized via model distillation for efficient 8-step CFG-free inference.

2.2 Training-free Inference Acceleration: SPRINT

To accelerate inference beyond parallel decoding, the paper proposes SPRINT, which reduces cost along two axes:

1. Sparse Prefix Retention: Prunes the prefix Key-Value (KV) cache in a modality-aware manner to lower per-step attention cost. A composite importance score $s_i$ for each prefix position $i$ is calculated: $$s_i = \alpha \cdot \bar{I}_i + (1 - \alpha) \cdot c_i$$ where $\bar{I}_i = \| k_i \|_2 / \left( \frac{1}{L} \sum_{j=1}^{L} \| k_j \|_2 \right)$ is the mean-normalized key norm, $c_i = \max_v p_\theta(v | x_t)$ is the top-1 softmax confidence, and $\alpha=0.5$. Separate keep ratios are used for text ($r_{text}$) and image ($r_{img}$) tokens.
2. Non-uniform Token Unmasking: Replaces the fixed denoising schedule with a confidence-adaptive strategy. At each step, all masked positions with confidence exceeding a threshold $\tau$ are accepted: $$A = \{ n \in [m] : c_n > \tau \}.$$ A minimum number of acceptances is enforced to guarantee termination.

3. Data Preparation

A large-scale, meticulously curated dataset is constructed:

• Multimodal Understanding: Includes image-caption data, OCR (via a coarse-to-fine pipeline), grounding/counting data, world knowledge/reasoning data, and high-quality text data.
• Image Generation: Over 200M web images filtered for resolution, aesthetics (ArtiMuse score >60), and quality (DeQA-Score >4.0). Captions are generated/enhanced by Qwen3-VL.
• Image Editing: Combines open-source datasets (X2Edit, OmniEdit, etc.) and synthesized pairs. Instructions are refined by Qwen3-VL for accuracy.
• Interleaved Data: Constructed from the Koala36M video corpus with strict filtering for duration, quality, and motion. Frame sequences (2-6 frames) are captioned to provide instruction-following data.
• Reasoning-Augmented Data: Sourced from Flux-6M, Zebra-CoT, and Weave (~8M samples) to enable chain-of-thought reasoning.

4. Model Training

A three-stage training pipeline is employed:

Stage 0: Vision-Language Alignment: Aligns visual and linguistic representations using image-caption pairs. A random masking strategy is applied (image tokens for generation, text tokens for understanding). Progressive resolution from 256×256 to 512×512.

Stage 1: Multi-task Pre-training: Trains on diverse multimodal data (understanding: interleaved, OCR, grounding; generation: editing, controllable generation, style transfer) to develop comprehensive capabilities.

Stage 2: Supervised Fine-Tuning (SFT): Conducted in two phases (8k then 16k context) on high-quality instruction-following data for complex reasoning and generation.

4.2 Pre-Training Optimization

• BDLM Loss: The training uses the Block Diffusion Language Model (BDLM) objective, which operates on block-level masked regions: $$\mathcal{L}_{\text{BDLM}}(\theta) = -\mathbb{E}_{t, x_0, x_t} \left[ \frac{\alpha'_t}{1 - \alpha_t} \sum_{k=1}^{K} \sum_{i=1}^{L_B} \mathbb{1}[x^i_{t,k} = \text{[MASK]}] \log p_\theta(x^i_{0,k} | x_{0,<k}, x_{t,k}) \right]$$ where $K$ is the number of blocks, $L_B$ is the block size, $x_{0,<k}$ are preceding clean blocks, and $x_{t,k}$ is the noisy version of the current block.
• Load Balancing for MoE: An auxiliary-loss-free mechanism is used to promote uniform expert utilization, with bias updates normalized for stability: $$b_i = b_i + u \times \frac{(F_i - Q_i)}{\sqrt{\frac{1}{n} \sum_{j=1}^{n} (F_j - Q_j)^2}}$$ where $F$ is the current expert load distribution and $Q$ is the ideal uniform distribution.

4.3 Supervised Fine-Tuning Optimization

• Mask Token Reweighting Loss (MTRS): Adapts the BDLM loss to be conditional on a prompt $c$. A re-weighting mechanism $\beta_j$ balances gradient contributions across samples with vastly different lengths: $$\mathcal{L}_{\text{MTRS}} = \frac{\sum_j \beta_j \mathcal{L}^{(j)}_{\text{SFT}}}{\sum_j \beta_j}, \quad \text{where } \beta_j = \frac{1}{\sqrt{\sum_{k=1}^{K} \sum_{i=1}^{L_B} \mathbb{1}[x^{i,(j)}_{t,k} = \text{[MASK]}]}}.$$
• Complementary Masking: Enhances data efficiency by constructing two antithetical training instances (primary and inverse mask) from a single sequence.

4.4 Diffusion Decoder Training

Optimized via a flow matching objective:

$$\mathcal{L}_{\text{FM}}(\theta) = \mathbb{E}_{x_0, x_1, z, t} \left[ \| v_{\theta, t}(x_t, z) - v_t \|_2^2 \right]$$

where $z$ represents the conditioned semantic visual tokens. Training is decoupled into three stages: Warm-up, Multi-domain Generalization, and High-fidelity Refinement.

Few-step Generation: Achieved via a lightweight consistency-based distillation framework, combining flow matching with a consistency term:

$$\mathcal{L}_{\text{Distill}}(\theta) = \mathbb{E}_{x_0, z, t} \left[ \| v_{\theta, t} - v_t \|_2^2 + \| u_{\theta, t} - v_t + t \cdot \frac{d u_{\theta^-, t}}{d t} \|_2^2 \right]$$

where $u_{\theta^-, t} = \mathrm{stop\_grad}(u_{\theta, t})$. This enables 8-step CFG-free inference.

Empirical Validation / Results

5.1 Multimodal Understanding Performance

LLaDA2.0-Uni was evaluated on 21 benchmarks across general VQA, reasoning, and OCR/document understanding.

Table 2: Overall Comparison on Multimodal Understanding Benchmarks

Key Findings: LLaDA2.0-Uni demonstrates strong and comprehensive understanding capabilities. It significantly outperforms existing diffusion-based unified models (Lumina-DiMOO, LLaDA-o) across all categories and performs on par with state-of-the-art specialized VLMs like Qwen2.5-VL-7B, even outperforming it on specific metrics (e.g., MMStar, CountBench).

5.2 Text-to-Image Generation Performance

Table 3: Performance on GenEval Benchmark (Compositional Prompt Following)

Key Findings on Generation:

• GenEval & DPG-Bench: LLaDA2.0-Uni achieves highly competitive overall scores (0.89 on GenEval, 87.76 on DPG), outperforming all other unified models and bridging the gap with top-tier generation-only models. It shows a particular advantage in spatial arrangement (Position: 0.90).
• Text Rendering (CVTG-2K): Leads unified models with a score of 0.765 and demonstrates exceptional stability in multi-region text generation.
• Reasoning-Informed Generation (WISE-Bench): Achieves a strong score of 0.68, ranking first among unified models. Incorporating a reasoning mode yields a further 10% improvement (to 0.78).

5.3 Image Editing Performance

LLaDA2.0-Uni achieves the best Overall score (3.92) on the ImgEdit benchmark among unified models, excelling in Adjust and Hybrid tasks. On the challenging multi-reference editing benchmark (MICo-Bench), it sets a new state-of-the-art with a score of 47.1, significantly outperforming strong baselines.

5.4 Interleaved Generation and Reasoning

• Interleaved Generation: On the proposed InterGen benchmark, LLaDA2.0-Uni generally outperforms Emu3.5, particularly in Story Telling and Time Series Forecasting tasks.
• Interleaved Reasoning: The model demonstrates promising capabilities in step-by-step logical reasoning for tasks like chess strategy and physics problem-solving, as shown qualitatively.

5.5 Ablation Studies

Table 13: Analysis of SPRINT Acceleration

Key Finding: SPRINT achieves a 1.6× speedup (24.3 → 39.8 TPS) with a negligible average performance drop (-0.6). The speedup is largest on benchmarks with longer outputs (e.g., DocVQA: 3.5×).

Table 14: Analysis of Diffusion Decoder Distillation
