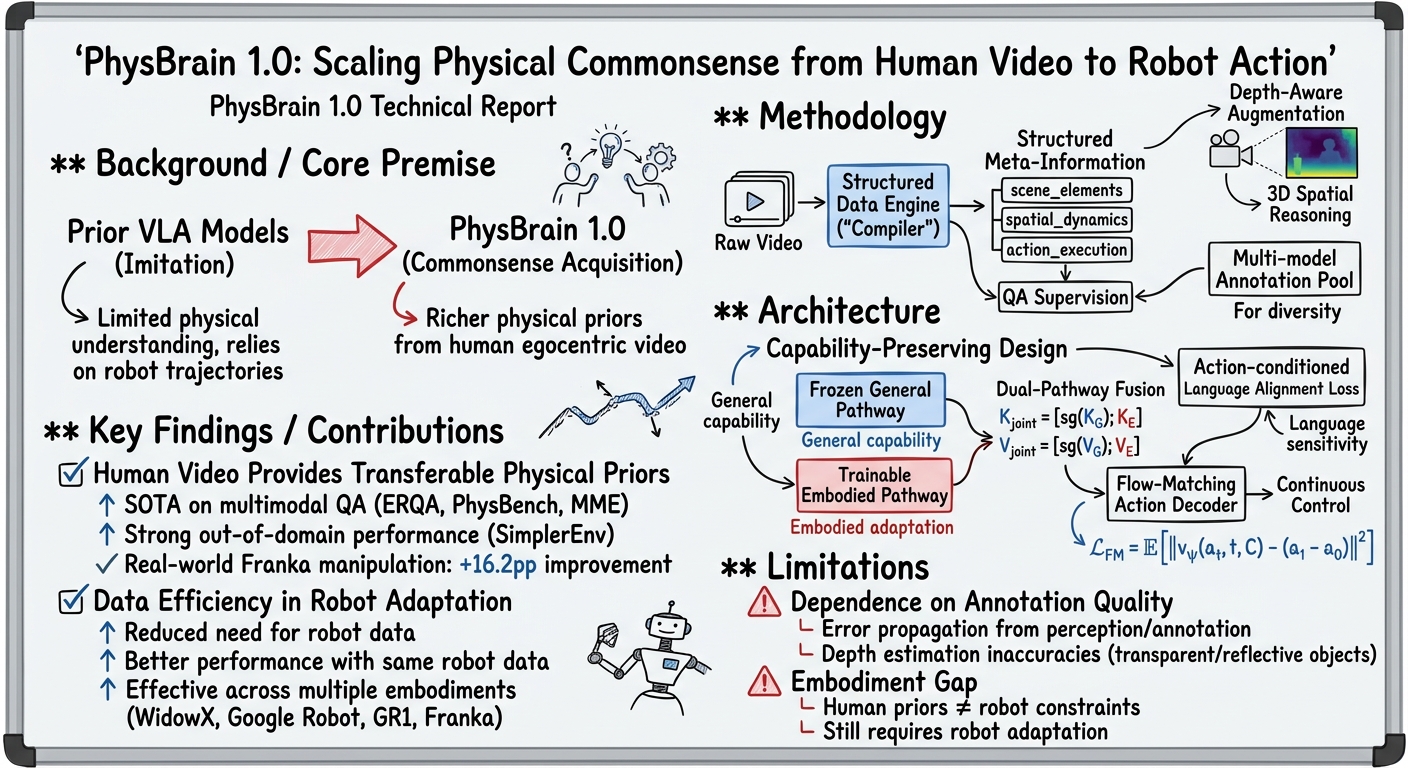

Here is a comprehensive summary of the academic paper "PhysBrain 1.0 Technical Report".

Summary (Overview)

• Core Premise: Introduces a training paradigm shift from scaling robot trajectories for Vision-Language-Action (VLA) models to first building strong physical commonsense from large-scale human egocentric videos, then adapting these priors to robot control.
• Data Engine: Develops a novel pipeline that converts raw human interaction videos into structured physical supervision (scene elements, spatial dynamics, action execution, depth-aware relations) and renders them into diverse, physically-grounded Question-Answer (QA) pairs for Vision-Language Model (VLM) training.
• Architecture: Proposes a dual-pathway VLA adaptation architecture with a frozen general pathway to preserve multimodal capabilities and a trainable embodied pathway for action generation, coupled with an action-conditioned language alignment objective to maintain instruction sensitivity.
• Key Results: Achieves state-of-the-art (SOTA) performance on multiple multimodal QA benchmarks (ERQA, PhysBench, MME, etc.) and embodied control benchmarks (SimplerEnv-WidowX/GoogleRobot, LIBERO, RoboCasa-GR1), demonstrating strong out-of-domain generalization and data-efficient robot adaptation.
• Real-World Validation: Shows improved performance in real-world tabletop manipulation tasks with a Franka robot, confirming the transferability of human-derived physical priors.

Introduction and Theoretical Foundation

The paper identifies a limitation in current VLA research: the dominant paradigm relies heavily on scaling expensive, platform-specific robot trajectory data, which provides limited coverage of the physical world and does not guarantee the model learns underlying physical regularities.

Core Principle: "Understanding first, action next."

• Motivation: Embodied intelligence training should move from pure action imitation towards physical commonsense acquisition. Human egocentric video is proposed as a complementary, scalable data source rich in physical interactions (contact, reachability, object state change, tool use).
• Research Questions:
  1. Can human first-person video be systematically transformed into scalable physical supervision?
  2. Can the resulting priors transfer effectively to downstream embodied control?
• Theoretical Basis: The approach is grounded in the idea that many physical regularities (e.g., grasp feasibility, spatial constraints, object state dynamics) are not robot-specific but are general principles observable in human interaction. Learning these priors from broad human video can provide a more sample-efficient foundation for subsequent robot policy learning.

Methodology

The PhysBrain 1.0 system consists of two main components: a Data Engine and a VLA Architecture.

1. PhysBrain 1.0 Data Engine

A staged pipeline designed as a "compiler" to transform video into explicit physical supervision.

2.1 Design Goal: Create supervision that is physically explicit (describes objects, attributes, spatial arrangements, changes) and separates scene meta-information from final model supervision.

2.2 Data Sources: Uses egocentric datasets (Ego4D, BuildAI, EgoDex, EPIC, SEA-Small). Clips are filtered for visual quality and camera motion stability.

2.3 Structured Scene Meta-Information: Video segments are parsed into a JSON schema with three core fields:

• scene_elements: Main objects, environment, material, geometry, physical state.
• spatial_dynamics: Initial layout and spatial changes during interaction.
• action_execution: A brief instruction and a detailed execution sequence emphasizing trajectory and contact physics.

2.4 Depth-Aware Spatial Augmentation: Uses Depth Anything v3 to associate objects with point-wise depth estimates. This enables QA about relative/absolute depth and metric distance, crucial for understanding continuous spatial displacement for action.

2.5 QA Generation: The structured meta-information is used to generate diverse, free-form QA pairs using a multi-model pool (GPT-5, Gemini, Qwen). The QA covers multiple capability families, as summarized in Table 1.

Table 1: Capability coverage of the PhysBrain 1.0 QA generation stage

2.6 Embodied Reasoning Format: For physical interaction QA, answers follow a structured format to encourage an embodied thought process: [Perception - Environment] → [Perception - Object] → [Spatial Planning] → [Action Execution]

2.7 Quality Control: Implements checks at each pipeline stage (JSON parsing, depth file existence, etc.) to filter out malformed records before final QA generation.

2. PhysBrain 1.0 Architecture

A system to transfer physical priors from the base VLM to a robot controller without catastrophic forgetting.

3.1 Overview: Three coupled components: 1) Physically informed base VLM, 2) Dual-pathway VLA adaptation, 3) Language-aware action objective.

3.2 Physically Informed Base Model: A general VLM (based on Qwen3-VL) is trained on the QA data from the Data Engine to acquire physical commonsense.

3.3 Capability Preservation During Embodied Adaptation: Employs a dual-pathway architecture.

• General Pathway: Frozen, initialized from the base VLM. Processes visual and language input as a stable semantic reference.
• Embodied Pathway: Trainable. Receives task context for action prediction. The pathways communicate via asymmetric layer-wise fusion. Let $H^l_G$ and $H^l_E$ be the hidden states of the general and embodied pathways at layer $l$. The embodied pathway computes its query from $H^l_E$, but its key-value context concatenates its own states with stop-gradient features from the general pathway:

$$K^l_{joint} = [sg(K^l_G); K^l_E], \quad V^l_{joint} = [sg(V^l_G); V^l_E]$$ $$H^{l+1}_E = \text{Attn}(Q^l_E, K^l_{joint}, V^l_{joint}) + \text{FFN}_E(H^l_E)$$

where $sg(\cdot)$ denotes stop-gradient. This allows the control pathway to condition on preserved semantic knowledge while gradients only update the trainable components.

3.4 Action-Conditioned Language Alignment: To prevent the policy from ignoring language instructions (a risk with narrow robot data), a paired-branch objective is used.

• Prior Branch: Action queries attend to vision but not language: Input_prior = [v, A, ℓ]
• Posterior Branch: Action queries attend to both vision and language: Input_post = [v, ℓ, A] A log-likelihood-ratio style objective encourages the action representation to retain instruction-relevant information.

3.5 Unified Action Generation: A flow-matching objective is used to decode continuous actions from the language-conditioned query states. Given ground-truth action $a_1$, noise $a_0 \sim N(0, I)$, and interpolation $a_t = (1-t)a_0 + t a_1$, the decoder predicts the velocity field:

$$\mathcal{L}_{FM}(\psi; C) = \mathbb{E}_{t, a_0, a_1} \left[ \| v_\psi(a_t, t, C) - (a_1 - a_0) \|^2_2 \right]$$

3.6 Robot Adaptation Protocol: The fully trained system is adapted to specific robot benchmarks (SimplerEnv, LIBERO, RoboCasa) using a limited amount of embodiment-specific trajectory data, aiming for data efficiency.

Empirical Validation / Results

4.1 VLM Experiments

PhysBrain 4B and 8B models, trained on the generated QA data, are evaluated on multimodal QA benchmarks.

Results (Figure 4): PhysBrain 8B achieves the best scores on ERQA (45.5), PhysBench (50.2), MME (2431.1), MMMU (55.2), OCRBench (85.7), and TextVQA (83.3). PhysBrain 4B achieves the best score on RealWorldQA (72.7). This confirms that the data engine improves both physical reasoning and general multimodal capability.

4.2 VLA Simulation Experiments

The PhysBrain 1.0 VLA policy is evaluated on four simulation benchmarks after embodiment-specific adaptation.

Table 2: SimplerEnv-WidowX Results

Table \ 3: SimplerEnv-GoogleRobot Results

Table 4: RoboCasa-GR1 Results (Selected Rows)

Table 5: LIBERO Results

Summary: PhysBrain 1.0 achieves the best average score on all four VLA benchmarks. The largest gains are on SimplerEnv and RoboCasa-GR1, demonstrating strong out-of-domain generalization. It matches SOTA on the near-saturated LIBERO benchmark.

5 Real-World Experiments

Evaluated on a Franka Research 3 robot performing tabletop vegetable grasping and long-horizon semantic tasks (e.g., "pick up all green vegetables").

Results (Figure 6): Compared to the strong baseline $\pi_{0.5}$ trained on the same robot data, PhysBrain 1.0 improves:

• Single-Object Grasping: Average success rate from 47.1% to 63.3% (+16.2 percentage points).
• Long-Horizon Tasks: Average success rate from 31.0% to 45.0% (+14.0 percentage points). This validates that human-derived physical priors improve real-world robot performance even with identical embodiment-specific training data.

Theoretical and Practical Implications

• Paradigm Shift: Proposes a viable alternative to the "scale robot data" approach, emphasizing physical understanding as a precursor to efficient action learning.
• Data Efficiency: Demonstrates that robot data can play a narrower, more efficient role as an adaptation layer mapping general physical priors to a specific embodiment, rather than being the sole source of those priors.
• Architecture Design: Provides a blueprint (dual-pathway, language alignment) for adapting large VLMs to control tasks while mitigating catastrophic forgetting and maintaining instruction sensitivity.
• Broad Applicability: The method shows strong performance across diverse robot embodiments (WidowX, Google Robot, GR1, Franka) and task suites, suggesting its principles are general.
• Limitations Acknowledged: The pipeline's quality depends on upstream perception/annotation models and depth estimation. Human priors are not identical to robot constraints, so embodiment adaptation remains necessary.

Conclusion

PhysBrain 1.0 presents a training strategy built on "understanding first, action next." Its core contributions are:

1. A scalable data engine that transforms human video into structured, physically-grounded QA supervision.
2. Evidence that this supervision significantly improves a VLM's physical and multimodal reasoning.
3. An adaptation architecture that successfully transfers these priors to robot control while preserving capabilities.
4. Empirical demonstration that this approach leads to SOTA, data-efficient performance on both VLM and VLA benchmarks, including real-world tasks.

The work suggests a promising direction for embodied AI: scaling the model's understanding of the physical world before, or in conjunction with, scaling action imitation.
