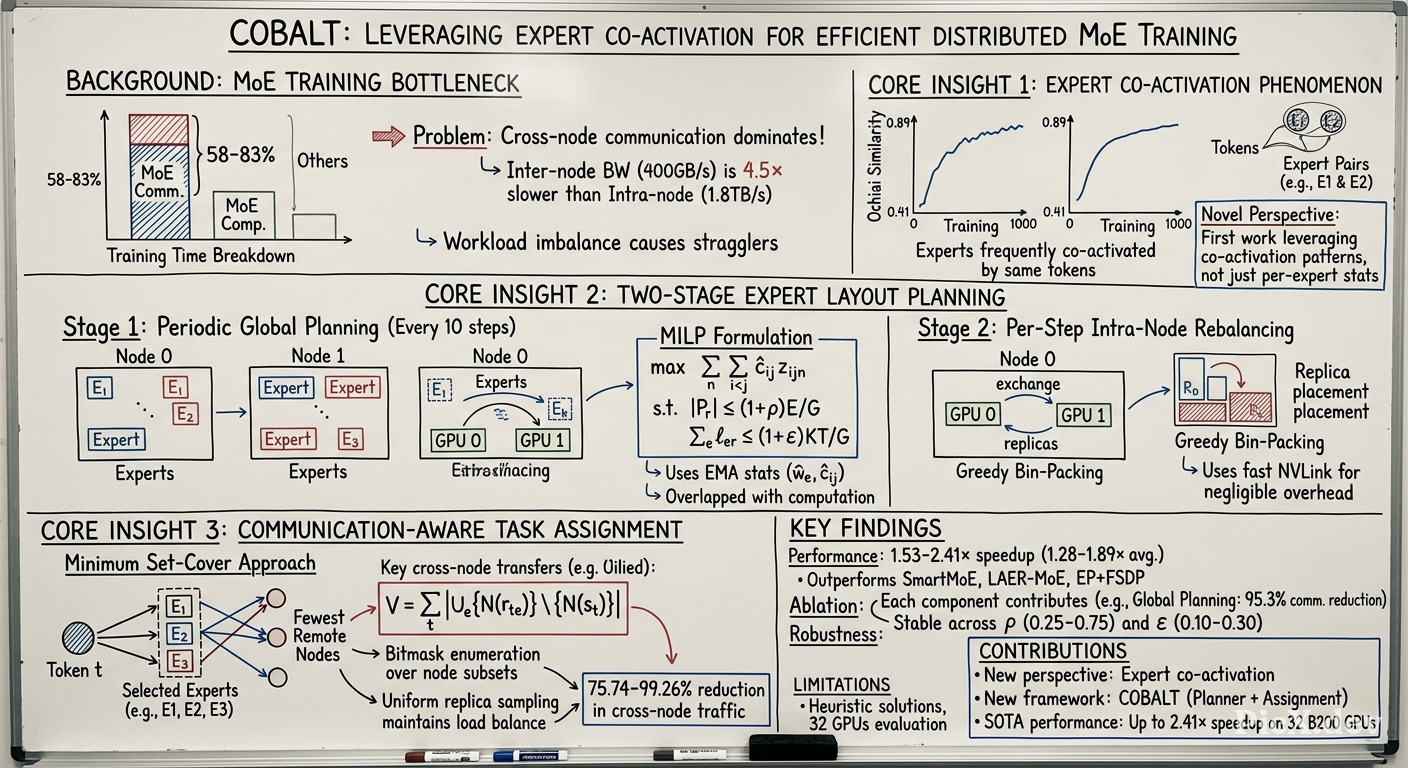

Summary (Overview)

• Cobalt is a novel distributed training framework for Mixture-of-Experts (MoE) models that leverages the observation that many expert pairs are frequently co-activated by the same tokens.
• It introduces a two-stage expert layout planner that (1) periodically performs a global re-layout of experts based on co-activation and workload statistics, and (2) performs per-step intra-node replica rebalancing to ensure workload balance.
• A communication-aware task assignment algorithm routes tokens to the fewest remote nodes possible, significantly reducing cross-node traffic.
• Experiments on 32 NVIDIA B200 GPUs show Cobalt achieves up to 1.53–2.41× speedup (1.28–1.89× on average) over existing frameworks, while reducing cross-node token transfer volume by 75.74%–99.26%.
• This is the first work to exploit expert co-activation for communication reduction and workload balance in distributed MoE training.

Introduction and Theoretical Foundation

Background & Motivation: MoE architectures scale LLMs by routing each token to a small subset of experts, keeping per-token computation nearly constant. Training large MoE models relies on Expert Parallelism (EP), which distributes expert replicas across GPUs and uses all-to-all communication. EP is bottlenecked by two factors:

1. Cross-node token transfers: Inter-node bandwidth (e.g., 400 GB/s InfiniBand) is significantly lower than intra-node bandwidth (e.g., 1.8 TB/s NVLink). Communication can account for 58%–83% of training time.
2. Skewed expert workloads: Uneven token-to-expert assignments lead to imbalanced computation across GPUs.

Key Observation (Expert Co-activation): The authors empirically track the set of active tokens for each expert and compute the Ochiai similarity between expert pairs:

$$\text{Ochiai}(A, B) = \frac{|A \cap B|}{\sqrt{|A| \cdot |B|}}$$

where $A$ and $B$ are the sets of tokens activating experts $A$ and $B$. During training of GLM-4.5-Air, the average Ochiai similarity rises from 0.41 to 0.89 (Layer 35) and from 0.28 to 0.86 (Layer 41). This indicates that many expert pairs are co-activated by the same tokens, and this co-activation strengthens over training. Critically, when two selected experts reside on the same remote node, node-level token deduplication means the token is only sent cross-node once, so co-locating co-activated experts can dramatically reduce cross-node traffic.

Problem Formulation: The paper formalizes the joint optimization of expert layout and task assignment. The communication cost is modeled as the total number of cross-node token transfers:

$$V = \sum_{t=1}^{T} \left| \bigcup_{e \in D_t} \{N(r_t^e)\} \setminus \{N(s_t)\} \right|$$

where $T$ is the number of tokens, $N(r)$ is the node containing rank $r$, $D_t$ is the set of selected experts for token $t$, $s_t$ is the source rank, and $r_t^e$ is the rank assigned to token-expert task $(t,e)$.

The full optimization problem is:

$$\arg\min_{\{P_r\}, \{r_t^e\}} V$$ $$\text{s.t.} \sum_r \mathbb{I}[e \in P_r] \geq 1, \forall e, \quad |P_r| \leq (1+\rho)E/G, \forall r$$ $$e \in P_{r_t^e}, \forall t, e \in D_t, \quad \sum_{e \in P_r} w_r^e \leq (1+\epsilon)KT/G, \forall r$$

Here, $P_r$ is the set of experts with a replica on rank $r$, $\rho$ is the replica budget, $\epsilon$ is the workload imbalance tolerance, $E$ is the number of experts, $G$ is the number of ranks, and $K$ is the number of selected experts per token.

Methodology

System Architecture: Cobalt separates expert layout planning from task assignment.

1. Two-Stage Expert Layout Planner

Stage 1: Periodic Global Planning. Every 10 training steps, a global re-layout is computed using historical statistics:

• $\hat{w}_e$: EMA of expert $e$'s assigned computation task count
• $\hat{c}_{ij}$: EMA of the number of tokens selecting both experts $i$ and $j$

The planning problem is reformulated to maximize total co-activation under workload constraints:

$$\arg\max_{\{P_r\}, \{w'_{er}\}} \sum_n \sum_{i<j} \hat{c}_{ij} \mathbb{I}[i \in P(n) \wedge j \in P(n)]$$

This is re-expressed as a Mixed-Integer Linear Programming (MILP) problem (Eq. 4 in the paper) and solved using libraries like SCIP. The solution yields the expert layout $\{P_r\}$ and expected workload division $\{w'_{er}\}$.

Stage 2: Per-Step Intra-Node Rebalancing. Between global updates, Cobalt adjusts replica placement within each node at every training step to rebalance workloads. This is formulated as a variant of the min-sum set partitioning problem, solved via a greedy bin-packing approach that sorts replicas by EMA workloads and partitions them greedily. This is fast enough to be overlapped with model computation.

2. Communication-Aware Task Assignment

For each token, the algorithm (Algorithm 1) works in two steps:

• Step 1 (Selecting execution nodes): For experts not on the source node, solve a minimum set-cover problem to find the fewest remote nodes covering all remaining experts. This is done via bitmask enumeration over the $N-1$ remote nodes.
• Step 2 (Selecting execution ranks): Uniformly sample an execution rank from the available replicas on the chosen node, ensuring equal expected workload distribution.

The complexity is $O(T \cdot 2^{N-1})$, which is negligible since $N$ is small (e.g., $N=4$ for 32 GPUs with 8 GPUs/node).

3. Implementation Details

• Built on PyTorch with DeepEP as the communication backend for node-level token deduplication
• MILP and min-sum partitioning solved on CPU; task assignment implemented as a GPU kernel using Triton
• Global layout updates triggered every 10 steps; intra-node rebalancing performed per-step and overlapped with computation

Empirical Validation / Results

Setup: Experiments on 4 NVIDIA B200 GPU servers (32 GPUs) with 1.8 TB/s NVLink and 400 GB/s InfiniBand. Models evaluated: Hunyuan3 (60B), GLM-4.5-Air (106B), DeepSeek-V3 (140B). Baselines: EP+FSDP, SmartMoE, LAER-MoE (all using DeepEP).

End-to-End Performance (Figure 6):

Key Results:

• Cross-node communication reduction: Cobalt reduces cross-node traffic by 75.74%–99.26% compared to EP+FSDP, and by 30.71–78.29% compared to LAER-MoE.
• Workload imbalance: Cobalt consistently achieves the lowest workload imbalance ratio (e.g., 1.13–1.24 vs. 3.35–6.66 for EP+FSDP).
• Ablation Study (GLM-4.5-Air, EP=16): Intra-node rebalancing lowers imbalance ratio from 3.35 → 1.28 (1.22× speedup); periodic global update reduces cross-node communication by 95.3% (1.43× speedup); communication-aware task assignment further reduces communication by 98.2%. Combined: 1.53× speedup.
• Overhead: Intra-node rebalancing takes negligible time and is overlapped; global planning takes 1.21–2.61 seconds but is overlapped with computation; task assignment overhead is <1 ms.
• Sensitivity: Performance is robust to varying $\rho$ (0.25–0.75) and $\epsilon$ (0.10–0.30), with <5% variation in training time.
• Scalability: Increasing GPUs from 8 to 32 improves throughput by 3.20–3.27×.

Theoretical and Practical Implications

Theoretical Contributions:

• Introduces a new perspective on MoE training optimization: leveraging pairwise expert co-activation rather than per-expert workload statistics alone
• Provides a formal optimization framework (Eq. 2) that jointly considers expert layout, task assignment, communication cost, and workload balance
• Demonstrates that co-activation patterns strengthen over training (Ochiai similarity increases from ~0.3 to ~0.9), suggesting structured specialization in MoE models

Practical Implications:

• For MoE training systems: Cobalt shows that communication-aware expert placement can dramatically reduce cross-node traffic (up to 99%), which is critical given the bandwidth hierarchy in modern GPU clusters
• For hardware design: The results highlight the importance of high intra-node bandwidth and node-level communication deduplication
• For model design: The observed co-activation phenomenon may inform future MoE architecture design, potentially encouraging gating mechanisms that explicitly promote expert co-activation

Conclusion

Main Takeaways:

• Cobalt is the first framework to exploit expert co-activation for both communication reduction and workload balance in distributed MoE training
• The two-stage planner (periodic global + per-step intra-node) effectively adapts to evolving co-activation patterns while keeping overhead low
• Communication-aware task assignment with minimum set-cover optimization significantly reduces cross-node traffic
• Achieves state-of-the-art performance: up to 2.41× speedup and 99.26% reduction in cross-node communication

Future Directions:

• Refining the optimization problem solving (current approach uses EMA statistics and heuristics, which may be sub-optimal)
• Evaluating Cobalt on larger clusters with other parallelism strategies (e.g., combining with data/sequence parallelism)
• Exploring how the co-activation phenomenon might inform future MoE architecture and gating design
