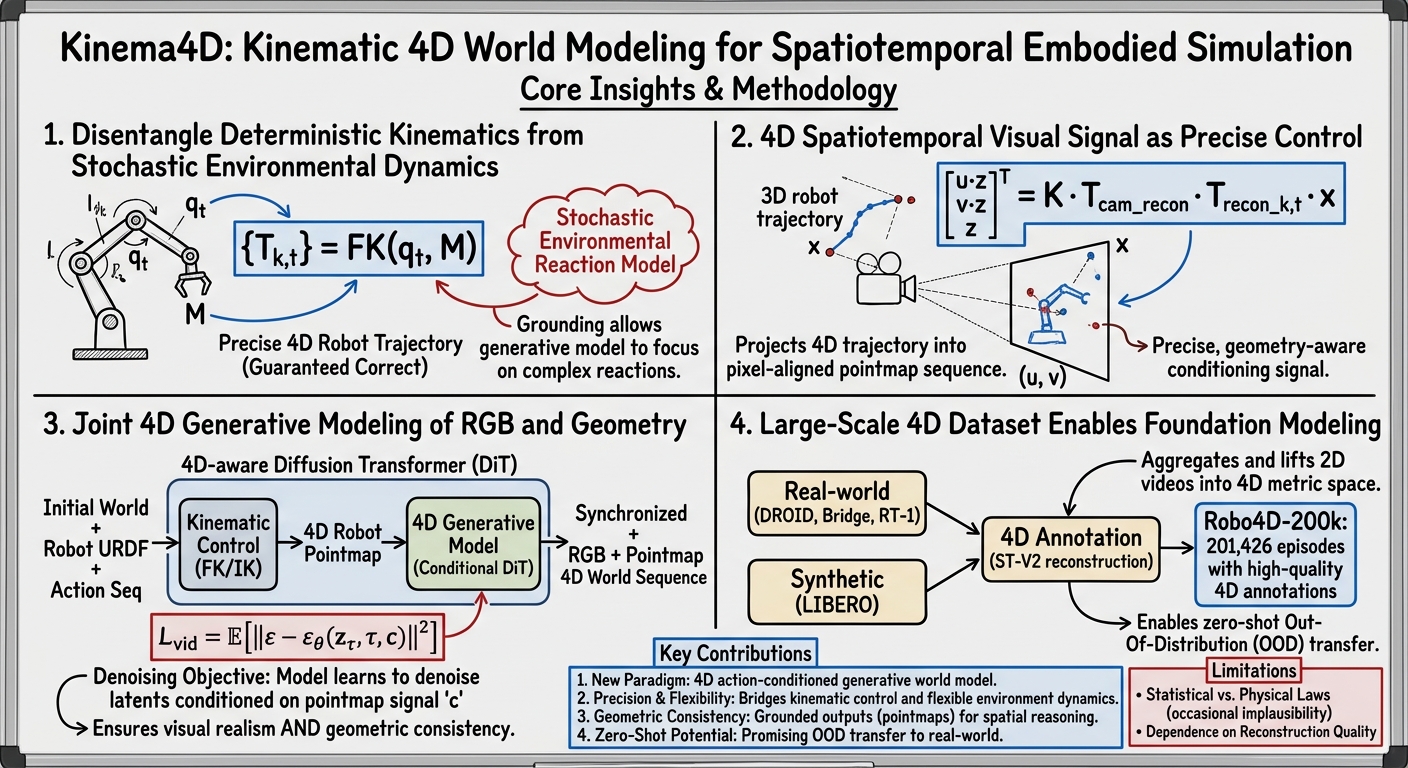

Kinema4D: Kinematic 4D World Modeling for Spatiotemporal Embodied Simulation

Summary (Overview)

• Key Contribution: Kinema4D is an action-conditioned 4D generative robotic simulator that disentangles robot-world interactions into precise kinematic control and generative environmental reaction modeling.
• Core Innovation: Transforms abstract robot actions into a precise 4D spatiotemporal visual signal (pointmap sequence) via kinematics, then uses this signal to control a generative model to synthesize synchronized RGB and pointmap sequences of environmental dynamics.
• Dataset: Introduces Robo4D-200k, a large-scale dataset of 201,426 robot interaction episodes with high-quality 4D annotations.
• Performance: Demonstrates superior performance in simulating physically-plausible, geometry-consistent interactions, outperforming baselines in video and geometric metrics. Shows potential for zero-shot out-of-distribution (OOD) transfer.
• Impact: Provides a high-fidelity foundation for advancing next-generation embodied simulation, enabling precise control and flexible synthesis of complex dynamics.

Introduction and Theoretical Foundation

Motivation: Simulating robot-world interactions is crucial for Embodied AI, but real-world execution is costly and unsafe. Traditional physics-based simulators lack visual realism and scalability due to reliance on hand-crafted properties. Recent video generative models simulate interactions but primarily operate in 2D pixel space, whereas robot-world interactions are inherently 4D spatiotemporal events. Methods relying on linguistic instructions or latent embeddings lack the precision needed for high-fidelity 4D modeling.

Core Insight: Kinema4D aims to restore the 4D spatiotemporal essence of interactions while ensuring precisely controllable robot actions. This is achieved by disentangling simulation into two synergetic components:

1. Precise 4D representation of robot actions via kinematic control: Robot action is a precise physical certainty in 4D space and should not be "guessed" by a generative model.
2. Generative 4D modeling of environmental reactions via controllable generation: While robot controls are deterministic, complex environmental dynamics require flexible generative modeling.

Problem Statement: Existing methods fail to resolve the trilemma of dynamics, precision, and spatiotemporal awareness. Kinema4D addresses this by learning intricate dynamics through a 4D generative model where abstract actions are grounded via kinematics.

Methodology

The architecture consists of two main components: Kinematic Control and 4D Generative Modeling.

3.1 Kinematic Control

This component transforms abstract robot actions into a precise 4D representation.

1. 3D Robot Asset Acquisition:

• For standardized robots: Use factory-provided 3D CAD meshes.
• For unknown platforms: Implement a reconstruction pipeline:
  • Capture orbital videos, sample frames.
  • Use Grounded-SAM2 and SAM2 for segmentation and mask propagation.
  • Use ReconViaGen to recover a textured robot mesh $C_{recon}$.
• Establish digital twin alignment: Map joint anchor points from the robot's URDF model $M$ to corresponding coordinates in $C_{recon}$.

2. Kinematics-driven 4D Robot Trajectory Expansion: Given aligned robot model $M$ within $C_{recon}$, transform input actions $a_{1:T}$ into full-body 4D trajectories.

• End-effector control: Actions as Cartesian poses $\{T_{ee,t}\}_{t=1}^T$. Use Inverse Kinematics (IK) solver: $$q_t = IK(T_{ee,t}, q_{t-1}, M)$$ where $q_{t-1}$ ensures temporal smoothness.
• Joint-space control: Actions as joint angles/velocities. $q_t$ obtained via direct mapping/integration.
• For each time $t$, perform Forward Kinematics (FK) to compute 6-DoF poses for all $K$ links: $$\{T_{k,t}^{recon}\}_{k=1}^K = FK(q_t, M)$$

3. Spatial-Visual Projection: Select a primary viewpoint (medial-frontal). Use extrinsic camera transformation $T_{recon}^{cam} \in SE(3)$ from reconstruction. Project the full-body trajectory onto the image plane to generate the 4D robot pointmap $M_{1:T} \in \mathbb{R}^{H \times W \times 3}$.

For any point $x$ on the surface of link $k$, its projected pixel coordinates $(u, v)$ and depth $z$ are:

$$\begin{bmatrix} u \cdot z \\ v \cdot z \\ z \end{bmatrix} = K \cdot T_{recon}^{cam} \cdot T_{k,t}^{recon} \cdot x$$

where $K$ is the camera intrinsic matrix. The pointmap $M_{1:T}$ is pixel-aligned with the RGB grid, storing camera-space $(x, y, z)$ coordinates.

3.2 4D Generative Modeling

A 4D diffusion model synthesizes the environment's reactive dynamics.

Preliminary: Latent Video Diffusion Built upon Latent Diffusion Models (LDM). A video sequence $V_{1:T}$ is encoded into latent tensor $z_0 \in \mathbb{R}^{T \times C \times H \times W}$. The diffusion process learns to generate this latent sequence by optimizing:

$$L_{vid} = \mathbb{E}_{z_0, \epsilon, \tau, c} \left[ \| \epsilon - \epsilon_\theta(z_\tau, \tau, c) \|^2 \right]$$

where $z_\tau$ is noisy latent at diffusion step $\tau$, $\epsilon_\theta$ is a Spatio-Temporal Transformer (e.g., DiT), and $c$ is the conditioning input.

Multi-modal Latent Construction

• Align temporal dimensions of initial RGB world image $I_0$ and robotic control signals via zero-padding or concatenating robot RGB sequence.
• Concatenate this input with the robot pointmap sequence $M_{robot}^{1:T}$ along the width dimension.
• Process through a shared VAE encoder to obtain input latents.
• Introduce a guided mask $m \in \{0,1\}^{T \times H \times W}$, where $m_{t,i,j}=1$ indicates robot occupancy (from $M_{robot}^{1:T}$). Implement a soft strategy: set value of 10% occupied regions to 0.5.
• Concatenate input latents, noisy latents, and robot masks channel-wise.

4D-aware Joint Modeling Backbone is a Diffusion Transformer predicting synchronized RGB and pointmap sequences.

• Use shared Rotary Positional Encoding (RoPE) across RGB and pointmap latents for pixel-wise alignment.
• Use learnable domain embeddings (following 4DNex) for cross-modal reasoning.

4D Sequence Synthesis Denoised latents processed by shared VAE Decoder reconstruct full-world pointmap/RGB sequence $M_{world}^{1:T}$. This yields a 4D world where every pixel's depth and motion are grounded in 3D space.

3.3 Robo4D-200k: A Large-Scale 4D Robotic Dataset

Data Preparation: Aggregate 2D RGB videos from real-world datasets (DROID, Bridge, RT-1) and synthetic data from LIBERO (including failure modes).

4D Annotation: Lift 2D RGB videos to 4D metric space using ST-V2 [75] for real data (produces robust, temporally consistent pointmap sequences). For LIBERO synthetic data, use native noise-free depth parameters.

Dataset Curation: Manual verification to prune low-quality data. Uniform temporal downsampling to 49-frame sequences per episode. Each episode captures a complete spatiotemporal interaction.

Robo4D-200k: 201,426 high-fidelity episodes. Largest-scale 4D robot-interaction dataset to date.

Empirical Validation / Results

4.1 Setting

Implementation: Built upon WAN 2.1 base model (14B parameters) with 4D-aware pre-trained weights from 4DNex. Use Low-Rank Adaptation (LoRA) for fine-tuning. Replace text encoder with VAE latents of robot sequences to focus on precise action execution.

Baselines: Compared against state-of-the-art generative embodied simulators: UniSim, IRASim, Cosmos, EVAC, ORV, Ctrl-World, TesserAct.

Metrics:

• Video synthesis: PSNR, SSIM, Latent L2 loss, FID, FVD, LPIPS.
• Geometric fidelity: Chamfer Distance (CD-L1, CD-L2) and F-Score@0.01, considering accuracy with Ground Truth and temporal consistency ("temp").

4.2 Main Results

Quantitative Results:

Table 1: Quantitative comparison of video generation metrics

Kinema4D achieves leading or second-best performance across all metrics.

Table 2: Quantitative comparison of geometric metrics

Kinema4D outperforms TesserAct in most geometric metrics, especially against absolute ground-truth.

Qualitative Results:

• Compared to Ctrl-World (2D): Kinema4D synthesizes high-fidelity sequences adhering to input actions with physically consistent environmental responses. Ctrl-World produces distorted kinematics and unrealistic changes.
• Compared to TesserAct (4D): Kinema4D precisely reflects Ground-Truth executions, including "near-miss" failure cases. TesserAct, relying on text instructions, hallucinates outcomes and struggles with action alignment. Kinema4D correctly interprets spatial gaps even when RGB textures overlap in 2D views.

4.3 Policy Evaluation

Evaluated utility as a high-fidelity tool for policy evaluation in both simulation platforms (noise-free) and real-world (complex physics, OOD) environments.

Setup: Use Diffusion Policy for action rollouts. In simulation, robot pointmap derived from integrated rendering. In real-world, use reconstruction pipeline (Sec. 3.1) without any fine-tuning on real data.

Table 3: Policy evaluation of actual pick&place under 3 different setups

• Simulation: Success rates closely aligned with ground truth.
• Real-world (OOD): Discrepancy within reasonable margin. Simulated success rates higher than actual executions, indicating challenge of simulating complex failure modes.

Qualitative Real-world Results: Kinema4D correctly interprets spatial gaps and synthesizes 'near-miss' failures. Robust to noisy robot pointmaps from reconstruction pipeline.

4.4 Ablation Studies and Analysis

Table 4: Quantitative results of ablation studies

Key findings:

• Robot Control Representation: Pointmap yields 2nd-best results. RGB+pointmap gives marginal improvements, but RGB alone introduces noise.
• Embodiment-agnostic Modeling: Mixed-dataset training outperforms single-domain baseline ("single"), confirming scalability advantage.
• 4D Output Necessity: Pure RGB output ("2D-out") then reconstruction degrades performance, proving 4D awareness throughout generation is essential.
• Robot Mask Map: Method performs stably with different soft mask ratios (10%, 20%, 50%, 70%). Discarding mask or 0% ratio degrades performance.
• Robustness to Pointmap Noise: Framework robust to random removal, Gaussian noise, translation, and rotation of robot pointmap.

Theoretical and Practical Implications

Theoretical Implications:

• Disentanglement of Simulation: Provides a novel framework that separates deterministic robot kinematics from stochastic environmental dynamics, enabling precise control and flexible synthesis.
• 4D Spatiotemporal Reasoning: Shifts paradigm from 2D pixel synthesis to 4D spatial-temporal reasoning, grounding interactions in geometric consistency.
• Generative World Models: Advances the field by integrating kinematic grounding with generative modeling, addressing the trilemma of dynamics, precision, and spatiotemporal awareness.

Practical Implications:

• High-fidelity Simulation: Enables simulation of physically-plausible, geometry-consistent interactions for diverse real-world dynamics.
• Scalable Training: Embodiment-agnostic modeling via pointmap-based control allows leveraging diverse datasets, enhancing generalization.
• Policy Evaluation Tool: Demonstrates utility as a high-fidelity simulator for evaluating robotic policies in both simulated and real-world OOD settings.
• Foundation for Embodied AI: Provides a new foundation for advancing next-generation embodied simulation, scaling up demonstrations, policy evaluation, and reinforcement learning.

Conclusion

Kinema4D presents a novel framework that integrates kinematics-driven grounding with a diffusion transformer-based generative pipeline to decouple deterministic robot motion from stochastic environmental reactions. It effectively simulates diverse real-world dynamics with high fidelity and shows potential for zero-shot OOD transfer. By providing a 4D world, it paves the way for scalable, high-fidelity, and complex embodied simulations.

Limitations: Environmental dynamics are learned through statistical synthesis rather than explicit physical constraints, potentially leading to behaviors that violate conservation laws or exhibit penetration artifacts. Future work could incorporate physical laws into the model.

Future Directions: Incorporating explicit physical constraints, expanding to multi-view simulations, and further improving zero-shot generalization capabilities.
