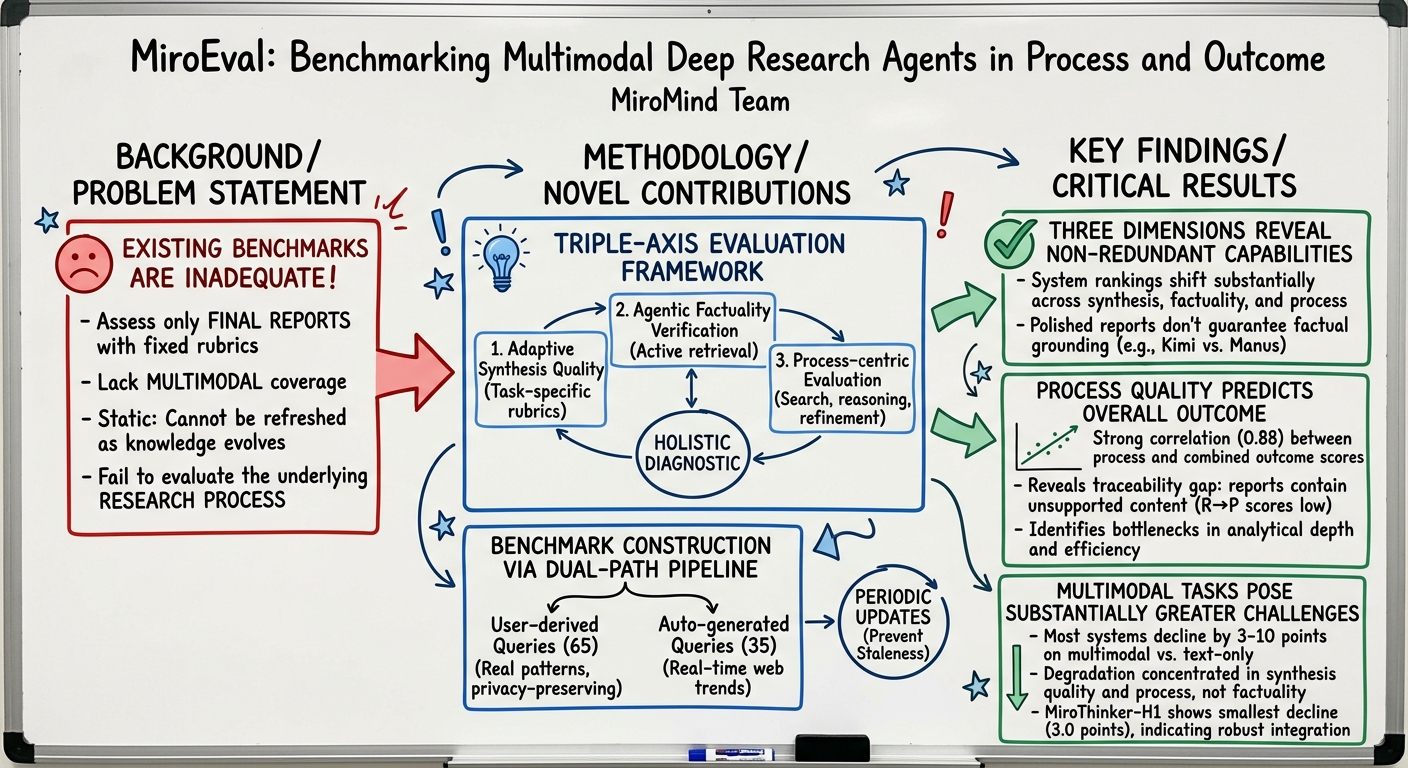

MiroEval: Benchmarking Multimodal Deep Research Agents in Process and Outcome

Summary (Overview)

• Holistic Benchmark: Introduces MiroEval, a benchmark and evaluation framework for deep research agents, comprising 100 tasks (70 text-only, 30 multimodal) grounded in real user needs and constructed via a dual-path pipeline that supports periodic updates.
• Multi-Dimensional Evaluation: Proposes a three-layer evaluation suite: (1) Adaptive Synthesis Quality with task-specific rubrics, (2) Agentic Factuality Verification via active retrieval over web and multimodal attachments, and (3) Process-Centric Evaluation auditing search, reasoning, and refinement.
• Key Findings: Evaluation of 13 systems reveals: the three dimensions capture complementary capabilities; process quality is a reliable predictor of overall outcome and reveals weaknesses invisible to output metrics; multimodal tasks pose substantially greater challenges, causing performance drops of 3-10 points.
• Top Performers: The MiroThinker series (particularly MiroThinker-H1) achieves the most balanced performance, ranking highest overall in both text-only (77.5) and multimodal (74.5) settings.
• Validation: Human verification confirms benchmark quality (92.0% precision). Robustness experiments and a human ranking study (Kendall’s τ = 0.91) validate the evaluation framework's reliability.

Introduction and Theoretical Foundation

The rapid advancement of Large Language Models (LLMs) has enabled a shift from passive text generation to agentic systems capable of autonomous planning and execution. Deep research, defined as the autonomous, multi-step process of investigating complex information needs through iterative search, evidence gathering, verification, and synthesis, has become a prominent paradigm.

As these systems are adopted in high-stakes domains (finance, healthcare, legal analysis), users demand more than fluent reports: they need factually reliable answers, grounded in thorough, traceable investigation, and capable of incorporating multimodal materials (images, PDFs, spreadsheets) common in real-world queries.

Existing benchmarks have limitations:

• Evaluate only the final report, not the underlying research process.
• Offer limited multimodal coverage beyond short-form QA.
• Rely on synthetic or academic queries that don't capture real-world complexity.
• Are static, risking obsolescence as knowledge evolves.

To address these gaps, MiroEval is introduced as a holistic diagnostic tool for the next generation of deep research agents, focusing on real user needs, multimodal support, and process-level assessment.

Methodology

1. Benchmark Construction (Query Collection)

The benchmark comprises 100 queries (70 text-only, 30 multimodal) built via two complementary paths (Figure 2), enabling a live and evolving setting.

A. User-Derived Query Curation (65 queries):

• Source: Inspired by query patterns from a closed internal testing phase (text and multimodal with attachments).
• Privacy: No original user queries appear. Strict protocols include automated filtering of sensitive content and systematic replacement of named entities.
• Process: An LLM classifies each anonymized query along dimensions (attachment type, complexity, target evaluation features). Queries are then routed to one of 6 rewriting strategies (Table 9) spanning three difficulty tiers (Easy, Medium, Hard) based on constraints, feature matching, quota bonuses, and usage decay.
• Strategies target specific evaluation features (Table 8), such as search, multimodal understanding, error correction, and planning.

B. Automated Query Generation (35 text-only queries):

• Source: Grounded in real-time web trends (via Serper API) across 12 topics with 3 subtopics each (Table 10).
• Process: An LLM generates 15 candidate queries per topic, conditioned on trends and anonymized seed exemplars.
• Three-Stage Filtering:
  1. Search Validation: Requires ≥ 3 results from ≥ 2 distinct domains.
  2. Deep-Research Necessity: An LLM evaluates if the query demands external investigation (confidence ≥ 0.7).
  3. Inverse Quality Assessment: Retains only queries where a baseline answer generated without search access is inadequate. The joint condition is: $$Q_{gen} = \{ q | \sigma(q) \le 0.75 \ \land\ \ell(q) \neq \text{high} \ \land\ \mathrm{requires\_search}(q) \}$$ where $\sigma(q)$ is a continuous quality score, $\ell(q)$ is a categorical label, and requires_search is a binary flag.

Benchmark Overview (Figure 3):

• Domains: Covers 12 domains (Tech: 20, Finance: 17, Science: 13, etc.).
• Task Types: 10 types (Decision & Recommendation: 17, Comparative Analysis: 16, Fact Enumeration & Verification: 15, etc.).
• Quality Verification: Three expert annotators achieved an overall precision of 92.0% (Table 2).

2. Evaluation Framework (Three Complementary Layers)

The evaluation suite assesses systems along three dimensions (Figure 4).

A. Comprehensive Adaptive Synthesis Quality Evaluation (§3.1)

• Adaptive Dimensions: For a query $Q = (I, A)$ (instruction $I$, optional attachments $A$), the framework constructs a tailored dimension space $D = D_{fixed} \cup D_{dynamic}(Q)$.
  • $D_{fixed}$: Universal aspects (Coverage, Insight, Instruction-following, Clarity).
  • $D_{dynamic}(Q)$: For text-only queries ($A = \emptyset$), generates 1–3 task-specific expertise dimensions. For attachment-augmented queries ($A \neq \emptyset$), adds a Grounding dimension.
• Key Facts Extraction: For multimodal tasks, an upstream module extracts verifiable factual anchors from raw attachments to generate precise, attachment-specific grounding criteria.
• Dynamic Scoring: Dimension weights $W_d$ and criterion weights $w_{d,c}$ are dynamically assigned. The evaluator scores each criterion $s_{d,c} \in [0, 10]$, and the final quality score is: $$S_{quality} = \sum_{d \in D} W_d \sum_{c} w_{d,c} s_{d,c}$$

B. Agentic Factuality Evaluation (§3.2)

• Claim Decomposition: The report $R$ is decomposed into a set of verifiable statements $S(Q, R) = \{s_1, ..., s_n\}$.
• Evidence Retrieval: For each statement $s$, an evaluation agent retrieves evidence from two sources: $$E(s) = E_{search}(s) \cup E_{attach}(s)$$
  • $E_{search}$: From external web search.
  • $E_{attach}$: From task-provided attachments using native multimodal processing (for images, PDFs) or retrieval-augmented processing (for spreadsheets, slides).
• Consistency Assessment: The agent assigns a factuality label: $$y(s) \in \{\text{RIGHT}, \text{WRONG}, \text{CONFLICT}, \text{UNKNOWN}\}$$ The CONFLICT label explicitly captures disagreements between heterogeneous sources.

C. Process-Centric Evaluation (§3.3)

• Process Representation: Raw process logs $P$ are transformed into a structured sequence of atomic steps (information acquisition, evidence inspection, synthesis, etc.) to recover dependencies and extract key process findings.
• Intrinsic Process Quality: Evaluated across five dimensions:
  1. Search Breadth: Explores wide range of sources/perspectives.
  2. Analytical Depth: Conducts multi-step reasoning and in-depth analysis.
  3. Progressive Refinement: Iteratively improves understanding.
  4. Critical Thinking: Evaluates source reliability and handles conflicts.
  5. Efficiency: Avoids unnecessary redundancy.
• Process-Report Alignment: Evaluates consistency between process findings and the final report in two directions:
  • Process → Report (P→R): Checks if major process findings are realized in the report.
  • Report → Process (R→P): Checks if report conclusions are traceable to sufficient process support.
  • Contradiction Detection (Contr): Evaluates handling of conflicting evidence.
• Overall Process Score: Defined as a weighted combination: $$S_{process} = \alpha S_{intrinsic}(P) + (1 - \alpha) S_{align}(P, R)$$

Empirical Validation / Results

Evaluation was conducted across 13 leading deep research systems (Table 3), including OpenAI Deep Research, Gemini-3.1-Pro, Claude, and three MiroThinker variants.

Main Results (Text-Only Setting)

Overall Performance Tiers (Text-Only):

• Top Tier: MiroThinker-H1 (77.5), OpenAI Deep Research (76.7), MiroThinker-1.7 (75.5).
• Middle Tier: Gemini-3.1-Pro (69.9), Kimi-K2.5 (68.4), MiniMax-M2.5 (67.4), Claude (67.7).
• Lower Tier: Manus (64.0), Qwen (64.7), Grok (60.2), Doubao (60.7).

Key Findings:

1. Dimensions are Complementary: System rankings shift substantially across dimensions. For example, Kimi-K2.5 has the highest Synthesis score (75.7) among non-MiroThinker systems but a low Factuality score (65.4). Manus has the lowest Synthesis score (55.4) but a competitive Factuality score (72.6).
2. Process Predicts Outcome: Process quality is broadly predictive of overall outcome quality. The top systems on Process are also the top on overall outcome.
3. Multimodal Challenge: Performance drops by 3 to 10 points in the multimodal setting. MiroThinker-H1 is most resilient (-3.0), while Qwen-3.5-Plus suffers the largest drop (-8.6).

Outcome-Level Analysis (Table 4, Figure 5)

• Synthesis Sub-Metrics: Specificity is the universal bottleneck (lowest-scoring sub-metric). Insight is the most discriminative capability (scores range from 54.8 to 80.3).
• Factual Claims – Precision-Volume Trade-off: Systems exhibit different strategies. For example:
  • ChatGLM Agent: High volume (4,096 correct claims) but lower precision (68.6 Right Ratio).
  • OpenAI Deep Research: Lower volume (3,335 correct) but high precision (83.3 Right Ratio).
  • MiroThinker Series: Achieves a balance—MiroThinker-H1 has high volume (3,746 correct) and high precision (81.1 Right Ratio) with the lowest absolute error count (161 wrong claims).

Process-Level Analysis (Table 5)

• Intrinsic Quality: Systems achieve reasonable Search Breadth but substantially lower Analytical Depth, making Depth the most discriminative intrinsic metric. Efficiency is a universal weakness, indicating substantial redundancy in research processes.
• Alignment Asymmetry: Findings → Report (F→R) scores are generally high (MiroThinker-H1: 87.0). Report → Process (R→P) scores are dramatically lower (MiroThinker-H1: 63.3), revealing a significant traceability gap—report content often cannot be traced back to the documented research process.
• Correlation: Process quality shows a strong Pearson correlation (0.88) with the combined outcome score, confirming its predictive value.

Further Analysis

• User-Derived vs. Auto-Generated Queries (Table 6): User-derived queries are consistently harder, but system rankings remain stable across both sources, validating the automated construction pipeline.
• Evaluation Robustness (Appendix D): Results are robust across repeated runs (std. dev. < 0.6), alternative judge models (Gemini), and prompt modifications. A human ranking study with 5 experts showed strong agreement with MiroEval rankings (Kendall’s τ = 0.91).

Performance Comparison Tables:

Table 3: Overall Performance Comparison

Table的行为 4: Synthesis and Factuality Breakdown (Text-Only, Excerpt)

Table 5: Process Evaluation Breakdown (Text-Only, Excerpt)

Theoretical and Practical Implications

• Holistic System Diagnosis: MiroEval moves beyond final-report evaluation to provide a multi-dimensional diagnostic tool, revealing complementary strengths and weaknesses (e.g., synthesis vs. factuality trade-offs).
• Importance of Process Evaluation: Demonstrates that process quality is a reliable predictor of overall outcome and uncovers critical weaknesses—like the traceability gap (R→P) and low Analytical Depth—that are invisible to output-level metrics. This validates process-centric evaluation as essential for assessing thorough investigation.
• Multimodal as a Key Challenge: The significant performance drop on multimodal tasks highlights that current systems struggle to integrate and reason over visual/content materials effectively, pointing to a crucial area for future development.
• Benchmark Design Principles: The dual-path construction (user-derived + auto-generated) ensures tasks are grounded in real needs while enabling temporal refresh, providing a model for creating live, evolving benchmarks.
• Guidance for Improvement: The analysis identifies specific bottlenecks: improving Specificity in reports, enhancing Analytical Depth and Efficiency in processes, and closing the traceability gap between reports and their supporting research.

Conclusion

MiroEval provides a comprehensive benchmark and evaluation framework for deep research systems, addressing gaps in existing evaluations by incorporating real user needs, multimodal support, and process-centric assessment.

The evaluation of 13 systems yields three principal findings:

1. Synthesis quality, factual precision, and process rigor are complementary dimensions.
2. Process quality reliably predicts overall outcome and reveals critical weaknesses like insufficient analytical depth and report-process traceability gaps.
3. Multimodal tasks pose substantially greater challenges, with most systems declining by 3-10 points.

The MiroThinker series, particularly MiroThinker-H1, demonstrates the most balanced performance across all dimensions. Human verification and robustness experiments confirm the benchmark's quality and the evaluation framework's reliability.

Limitations and Future Work: Process evaluation requires systems to expose intermediate traces, limiting applicability to fully closed-source systems. Factuality evaluation flags conflicts (CONFLICT) but does not resolve them. Future work will leverage the refreshable pipeline to keep MiroEval temporally relevant as a live benchmark.
