Spin: Shadow Predictive Indexer for Sparse Attention

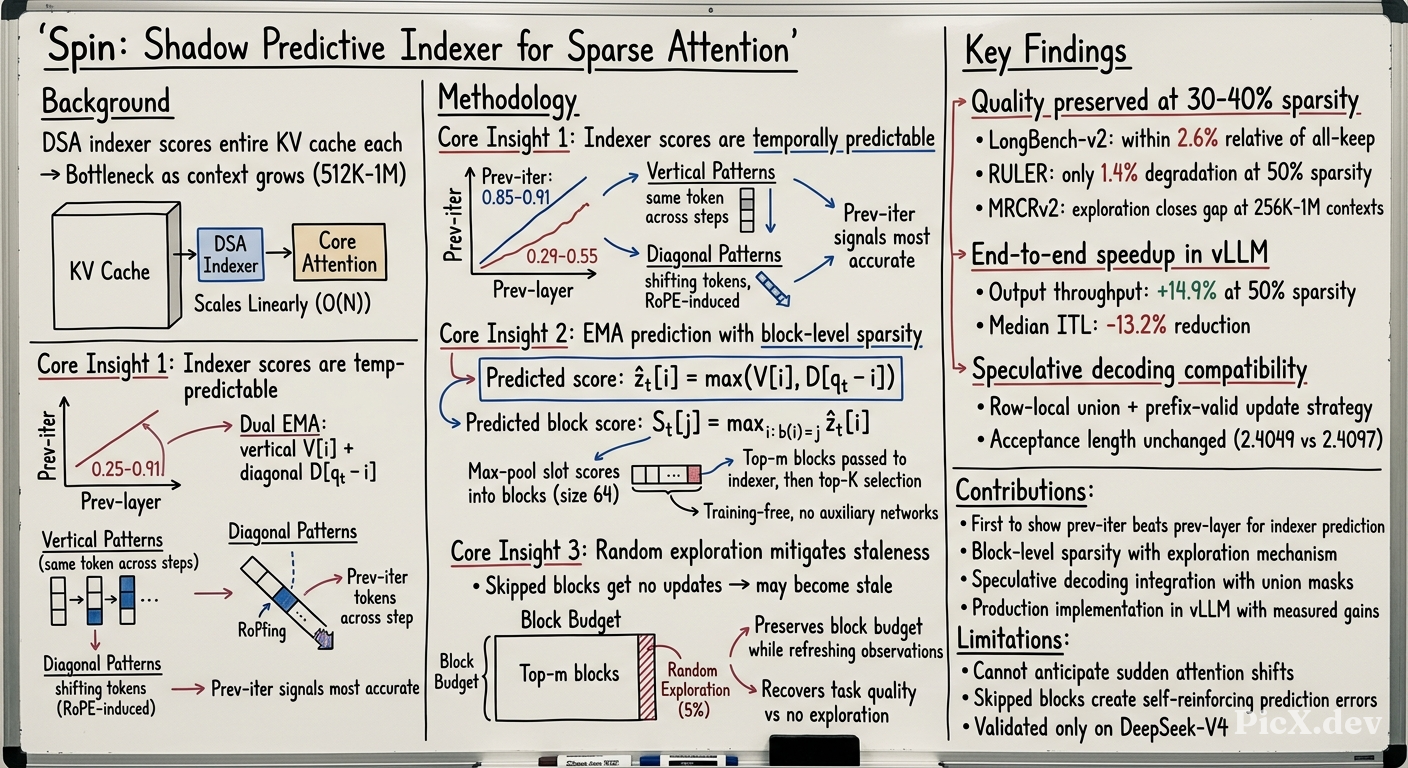

Summary (Overview)

• Problem: Indexer-based sparse attention (e.g., DeepSeek Sparse Attention) requires scoring the entire KV cache at every decoding step, making the indexer the dominant bottleneck in long-context inference despite core attention processing only a fixed top-K budget.
• Key Insight: Indexer scores exhibit predictable temporal patterns—vertical patterns (same tokens selected across iterations) and diagonal patterns (caused by RoPE positional encodings)—that can be leveraged to predict token importance without scoring the full KV cache.
• Proposed Solution: Spin (Shadow Predictive Indexer) uses lightweight exponential moving averages (EMAs) of historical indexer scores along vertical and diagonal patterns to predict block importance, enabling KV-block-level sparsification of the indexer input.
• Results: Spin achieves 30–40% block sparsity while preserving task quality across long-context benchmarks (LongBench-v2, AA-LCR, MRCRv2, RULER) and agentic benchmarks (tau2-airline), with end-to-end vLLM serving showing up to 14.9% output throughput improvement and 13.2% median inter-token latency reduction.
• Key Contributions: Training-free approach; block-level sparsification compatible with paged-attention backends; random exploration mechanism to mitigate stale observations; integration with speculative decoding (MTP) without visible acceptance degradation.

Introduction and Theoretical Foundation

Background

DeepSeek Sparse Attention (DSA) relies on an indexer to score every token in the context, while core attention processes only a fixed top-K budget. The indexer scales linearly with context length, making it the dominant bottleneck in long-context inference. This issue persists even with token-level compression (e.g., DeepSeek-V4's CSA layer reduces context length by 4× but does not change the indexer's linear scaling).

Key Observation

The authors observe that DSA's indexer patterns are predictable, exhibiting temporal patterns similar to those previously documented in attention scores. Specifically:

1. Prev-layer correlation: Indexer scores correlate with previous DSA layers' scores in the same decode iteration
2. Prev-iter correlation: Indexer scores correlate with the same layer's scores from previous iterations

The indexer score for context token $i$ at query token $t$ is computed as:

$$z_t[i] = \sum_{h=1}^{n_h} w_h \cdot \text{ReLU}(q_{t,h} \cdot k_{i,h})$$

where $n_h$ is the number of heads, and $q_{t,h}$, $k_{i,h}$, and $w_h$ are the query, key, and weight for head $h$.

Theoretical Foundation

The temporal predictability stems from two observable patterns in the top-K selection masks:

• Vertical lines: The indexer tends to select the same tokens across multiple iterations
• Diagonal bands: "Slash" patterns caused by RoPE positional encodings

These patterns allow prediction of indexer scores using scores from previous iterations (prev-iter prediction), which the authors empirically show outperforms cross-layer prediction.

Methodology

Prediction Signal Evaluation

The authors compare five prediction methods:

1. Random: Uniform random sampling (baseline)
2. Prev-layer: Reuse scores from preceding DSA layer in same iteration
3. Prev-layer (best-of-5 oracle): Best of five preceding layers
4. Prev-iter: Reuse scores from preceding iteration at same layer
5. Prev-iter (offset 1): Shifted by one position to align with diagonal pattern

Spin Algorithm

Spin extends naive prev-iter prediction through three mechanisms:

1. EMA-based prediction: Maintains two exponential moving average statistics:

• $V[i]$: vertical score for absolute slot $i$
• $D[q_t - i]$: diagonal score for relative offset $q_t - i$

The predicted score combines both:

$$\hat{z}_t[i] = \max(V[i], D[q_t - i])$$

2. Block-level pooling: Partitions slots into logical blocks of size $b$ and max-pools predicted scores:

$$S_t[j] = \max_{i: b(i)=j} \hat{z}_t[i]$$

3. Random exploration: Reserves fraction $\gamma$ of the block budget for random block selection to refresh stale observations.

Algorithm 1: Core Spin Block-Selection and EMA-Update

Input: Indexer query position q_t; context length N_t; state V, D;
       block size b; post-indexer selection size K; target sparsity ρ; EMA decay α
Output: Post-indexer top-K slot set T_t and updated state V, D

1: B_t ← ⌈N_t / b⌉
2: for j ← 0 to B_t - 1 do
3:   S_t[j] ← max over slots in block j of max{V[i], D[q_t - i]}
4: m_t ← min{B_t, max(⌈K/b⌉, ⌈(1-ρ)B_t⌉)}
5: M_t^B ← TopK({S_t[j]}, m_t)
6: z_t ← Indexer(M_t^B)
7: T_t ← TopK(z_t, K)
8: for i ∈ dom(z_t) do
9:   V[i] ← αV[i] + (1-α)z_t[i]
10:  D[q_t - i] ← αD[q_t - i] + (1-α)z_t[i]

Speculative Decoding Integration

For MTP with draft length $d$, Spin predicts block masks for each verifier query and uses their union as the shared indexer-input mask. EMA updates are deferred until verification outcomes are known, replaying observations from prefix-valid rows only.

Empirical Validation / Results

Prediction Signal Comparison

Table 1: Comparison of indexer prediction methods (Pearson correlation / top-K recall)

Prev-iter prediction is consistently the most accurate, maintaining recall as context length increases 9.7×.

LongBench-v2 Results

Table 2: Exact-match scores (%) over 503 examples

All Spin scores differ from all-keep by at most 2.6% relative.

AA-LCR and RULER Results

Table 3: AA-LCR and RULER results for DeepSeek-V4 Flash

Despite high miss rates (up to 48.83% p99 on RULER at 50% sparsity), task-score degradation remains small (≤3.7% relative).

MRCRv2 Stress Test (256K–1M Context)

Table 4: MRCRv2 task scores with/without 5% random exploration

Random exploration substantially narrows the gap to all-keep, especially at higher sparsities.

Agentic Benchmark (tau2-airline)

Table 5: tau2-airline results for DeepSeek-V4 Flash

At 30% sparsity, no task-score degradation; at 50%, only 4.1% relative decrease.

End-to-End vLLM Performance

Table 6: Serving performance with 507K cached context tokens

Speculative Decoding (MTP)

Table 7: Online MTP acceptance behavior on 1,499 SPEED-Bench requests

No visible change in acceptance behavior while retaining ~39.5% realized block sparsity.

Theoretical and Practical Implications

Theoretical Implications

1. Temporal predictability of indexer scores: The authors provide empirical evidence that DSA indexer scores are highly predictable from their own temporal history, with prev-iter correlation (0.85–0.91) far exceeding cross-layer correlation (0.29–0.55).

2. Vertical vs. diagonal patterns: The dominance of vertical patterns in DeepSeek-V4 (vs. diagonal bands in V3.2) suggests model-specific temporal dynamics that can be exploited differently.

3. Block-level prediction feasibility: Max-pooling slot-level predictions into block-level scores (A1) achieves comparable miss rates to slot-level selection (A0), validating the block-based approach.

Practical Implications

1. Training-free acceleration: Spin requires no additional training or auxiliary networks, making it immediately deployable with existing models.

2. Serving infrastructure compatibility: Block-level sparsification integrates naturally with paged-attention backends in vLLM.

3. Speculative decoding compatibility: The high overlap of block masks across verifier rows (only 0.4% sparsity loss from union) enables safe integration with MTP.

4. Exploration as staleness mitigation: Random exploration within the existing block budget recovers task quality without increasing computational cost.

Conclusion

Spin demonstrates that temporal statistics of indexer scores serve as an effective proxy for current block importance in DSA-based sparse attention. By maintaining vertical and diagonal EMA statistics, Spin skips up to 40% of indexer input blocks while preserving comparable task quality across long-context and agentic benchmarks. Random exploration mitigates stale observations within the same block budget, and the core predictor retains block sparsity without visible changes in MTP acceptance behavior.

Key Results Summary

• Quality: Comparable task quality at 30–40% block sparsity across all benchmarks
• Performance: Up to 14.9% output throughput improvement, 13.2% median ITL reduction
• Efficiency: Training-free, no auxiliary layers, compatible with speculative decoding

Limitations and Future Directions

1. Sudden attention shifts: Spin cannot anticipate patterns not represented in history
2. Self-reinforcing errors: Skipped blocks receive no observations, potentially compounding prediction errors
3. Limited evaluation scope: Results demonstrated on DeepSeek-V4 only; generalization to GLM-5, MiniMax-M3, and LongCat-2.0 not yet shown
4. Future work: Combining temporal history with current-query or cross-layer signals to reduce worst-case misses
