Summary of "LL A T I SA: Towards Difficulty-Stratified Time Series Reasoning from Visual Perception to Semantics"

Summary (Overview)

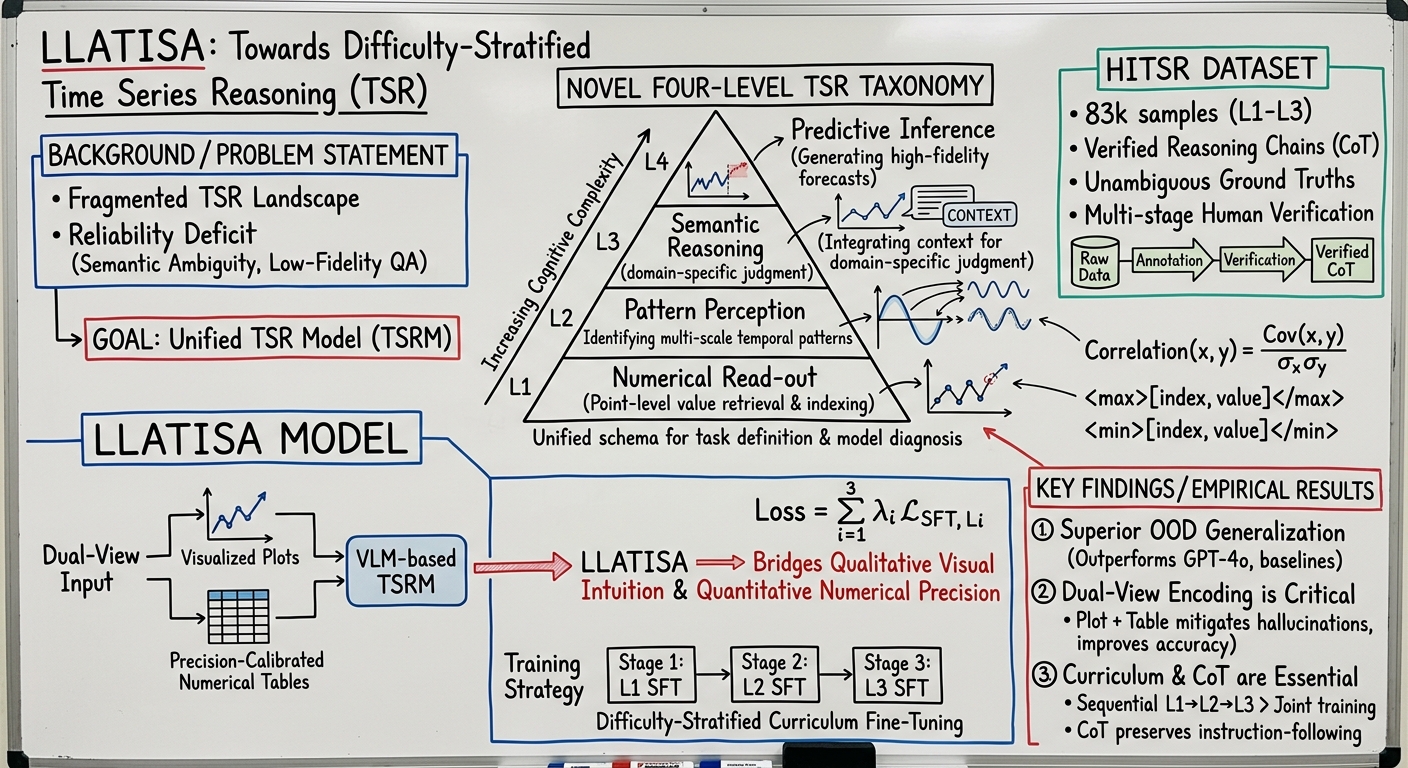

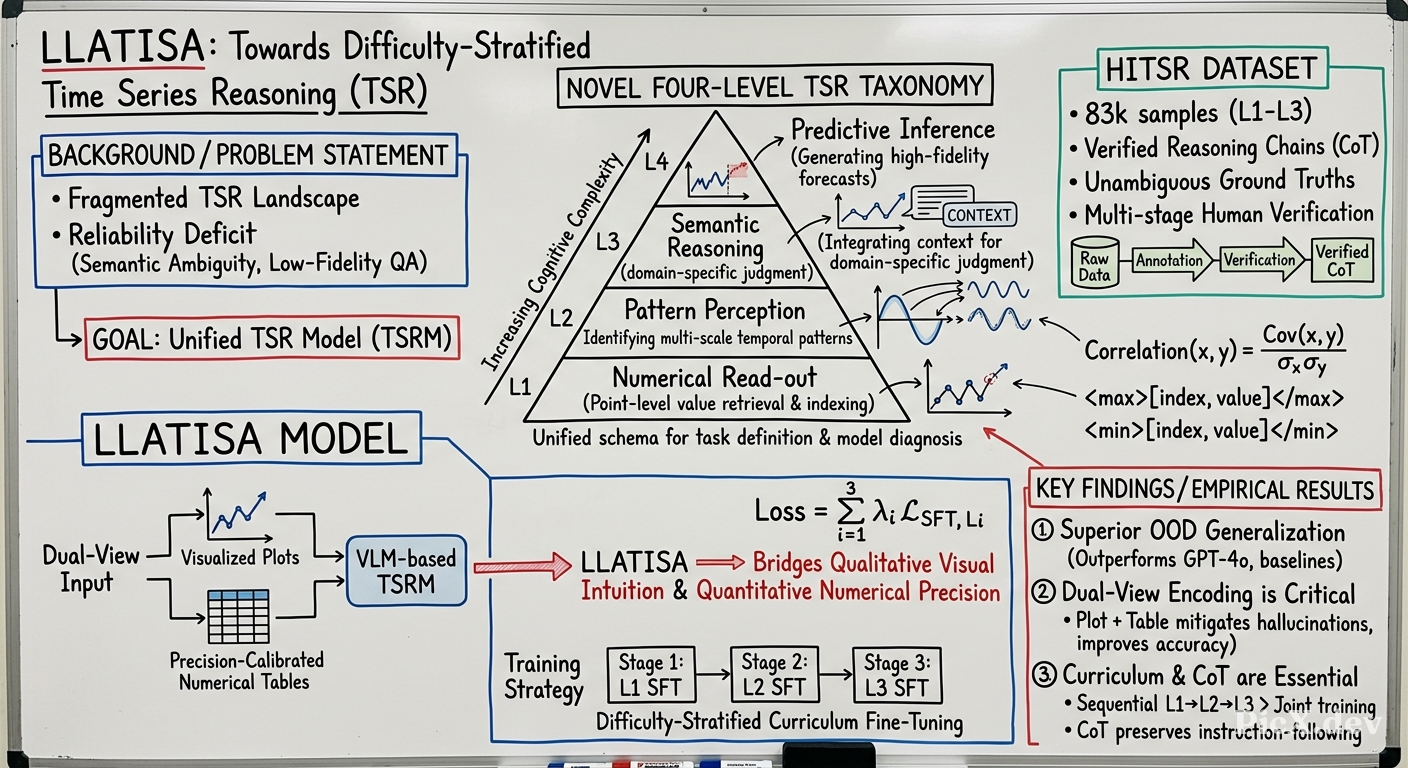

• Formalized TSR Taxonomy: Introduces a four-level cognitive taxonomy (L1-L4) for Time Series Reasoning (TSR) that stratifies tasks by increasing difficulty: Numerical Read-out (L1), Pattern Perception (L2), Semantic Reasoning (L3), and Predictive Inference (L4).
• High-Quality Dataset: Proposes H I TSR, a large-scale hierarchical dataset with over 83k samples spanning L1-L3, featuring unambiguous labels and verified Chain-of-Thought (CoT) trajectories for reliable training and evaluation.
• Novel Dual-View Model: Presents LL A T I SA (Large Language and Time Series Assistant), a VLM-based TSR model that integrates a time series plot (for qualitative perception) with a precision-calibrated numerical table (for quantitative grounding) in a dual-image input framework.
• Curriculum Learning Strategy: Employs a three-stage curriculum fine-tuning strategy aligned with the L1-L3 taxonomy, which progressively builds robust reasoning capabilities and enables effective generalization to out-of-distribution (OOD) scenarios and real-world applications (e.g., ECG interpretation).

Introduction and Theoretical Foundation

Comprehensive understanding of time series remains a significant challenge for Large Language Models (LLMs). Current research is hindered by fragmented task definitions and benchmarks with inherent ambiguities, preventing the rigorous evaluation and development of unified Time Series Reasoning Models (TSRMs). The authors argue that reliable TSR mirrors a multi-stage cognitive process, transitioning from point-level numerical grounding to series-level perception, high-level semantic interpretation, and context-aware generation.

To address the limitations of existing benchmarks (e.g., lack of a formalized taxonomy, semantic ambiguities, and reliability deficits), this work is grounded in two theoretical frameworks:

1. Bloom's Taxonomy (cognitive psychology): Maps the progression from Low-Order Thinking Skills (LOTS) to High-Order Thinking Skills (HOTS).
2. Bertin's Levels of Reading (visual analytics): Justifies the structural necessity from elementary data element reading to extrapolative reasoning.

This principled decomposition provides a diagnostic lens to pinpoint the cognitive boundaries of TSRMs.

Methodology

3.1 Time Series Reasoning Taxonomy

The authors formalize a difficulty-stratified taxonomy that decomposes TSR into four hierarchical levels of increasing complexity:

• L1: Numerical Read-out: Establish time-aware indexing and point-level numerical retrieval.
• L2: Pattern Perception: Identify and differentiate multi-scale temporal patterns using quantitative evidence.
• L3: Semantic Reasoning: Integrate time series observations with contextual knowledge to perform domain-specific reasoning.
• L4: Predictive Inference: Generate high-fidelity time-series predictions.

3.2 H I TSR Dataset

Building on the taxonomy, H I TSR is introduced as a unified dataset for training and evaluation across levels L1-L3. It comprises approximately 83k samples constructed via a multi-stage pipeline:

• Data Sources: L1 and L2 samples use synthetic time series for controlled, large-scale supervision. L3 samples use curated real-world time series from diverse domains.
• Task Formulation: Tasks are instantiated as short-answer (L1) or multiple-choice (L2-L3) questions, with supervision targets crafted as complete natural-language statements.
• Multi-Stage Verified CoT Annotation: Employs LLM-assisted generation and human verification to ensure high-fidelity reasoning chains and unambiguous ground truths.

3.3 LL A T I SA

To bridge the gap between qualitative visual intuition and quantitative numerical precision, the authors propose LL A T I SA. Its key design features are:

• Dual-View Input Framework: Pairs a standard time series visualization plot with a secondary image rendering the data as a structured index-value table.
• Backbone Model: Uses Qwen3-VL-8B-Instruct as its backbone VLM.
• Three-Stage Curriculum Fine-Tuning: The model is trained sequentially on H I TSR-L1, H I TSR-L2, and then either H I TSR-L3 or domain-specific benchmarks to progressively acquire L1-L3 capabilities.

Empirical Validation / Results

Extensive experiments were conducted to answer four research questions (RQs).

RQ1: Performance on Existing Benchmarks (OOD) LL A T I SA consistently outperforms proprietary models (GPT-4o) and various open-source baselines across L1-L3 OOD tasks. Key results from Table 1:

RQ2: Impact of TS Representation Strategies Ablation studies (Table 2) confirm the efficacy of LL A T I SA's dual-view encoding. It outperforms alternative strategies (text-only, vision-only, vision+text) on most OOD tasks. Incorporating explicit index information significantly improves point-level localization accuracy.

RQ3: Generalization to Real-World Applications LL A T I SA demonstrates strong transfer learning capability. When fine-tuned on the ECG-Grounding dataset (30k samples), it achieves competitive performance with high data efficiency, outperforming larger domain-specific models like GEM (trained on 1.186M samples) in lead-wise evaluation metrics (Table 3).

RQ4: Ablation Study on Curriculum & CoT Ablation studies (Table 4) validate the importance of the proposed components:

• Effectiveness of CoT: Training without CoT data ("w/o CoT") leads to significant OOD performance degradation (e.g., -17.91% on L3) and undermines the model's instruction-following capability.
• Effectiveness of Curriculum Learning: Single-stage "joint training" consistently underperforms compared to the sequential curriculum, especially on complex OOD L3 tasks (-14.93%).

Theoretical and Practical Implications

• Theoretical: Provides a unified, cognitively-grounded framework (L1-L4 taxonomy) for defining and evaluating TSR tasks, moving beyond fragmented benchmarks. It establishes that foundational numerical grounding (L1) is a prerequisite for reliable higher-order reasoning.
• Practical: LL A T I SA demonstrates a viable architecture for building robust TSRMs by synergizing visual perception and numerical precision. The H I TSR dataset serves as a high-quality resource for training and benchmarking. The curriculum learning strategy offers a blueprint for progressively cultivating TSR capabilities in models.

Conclusion

This paper proposes a difficulty-stratified view of TSR, formalized through a four-level taxonomy. The introduced H I TSR dataset and the LL A T I SA model, trained via a multi-stage curriculum, address key bottlenecks in current TSR research. Extensive experiments show that LL A T I SA consistently outperforms strong baselines, exhibits robust OOD generalization, and transfers effectively to domain-specific semantic reasoning, suggesting a practical path toward more reliable unified TSRMs.

Limitations & Future Work: The study focuses on supervised fine-tuning; exploring Reinforcement Learning Fine-Tuning (RFT) on H I TSR is left for future work. Other directions include integrating RL into the hierarchical curriculum and investigating robust initialization strategies.
