Look Where It Matters: High-Resolution Crops Retrieval for Efficient VLMs - Summary

Summary (Overview)

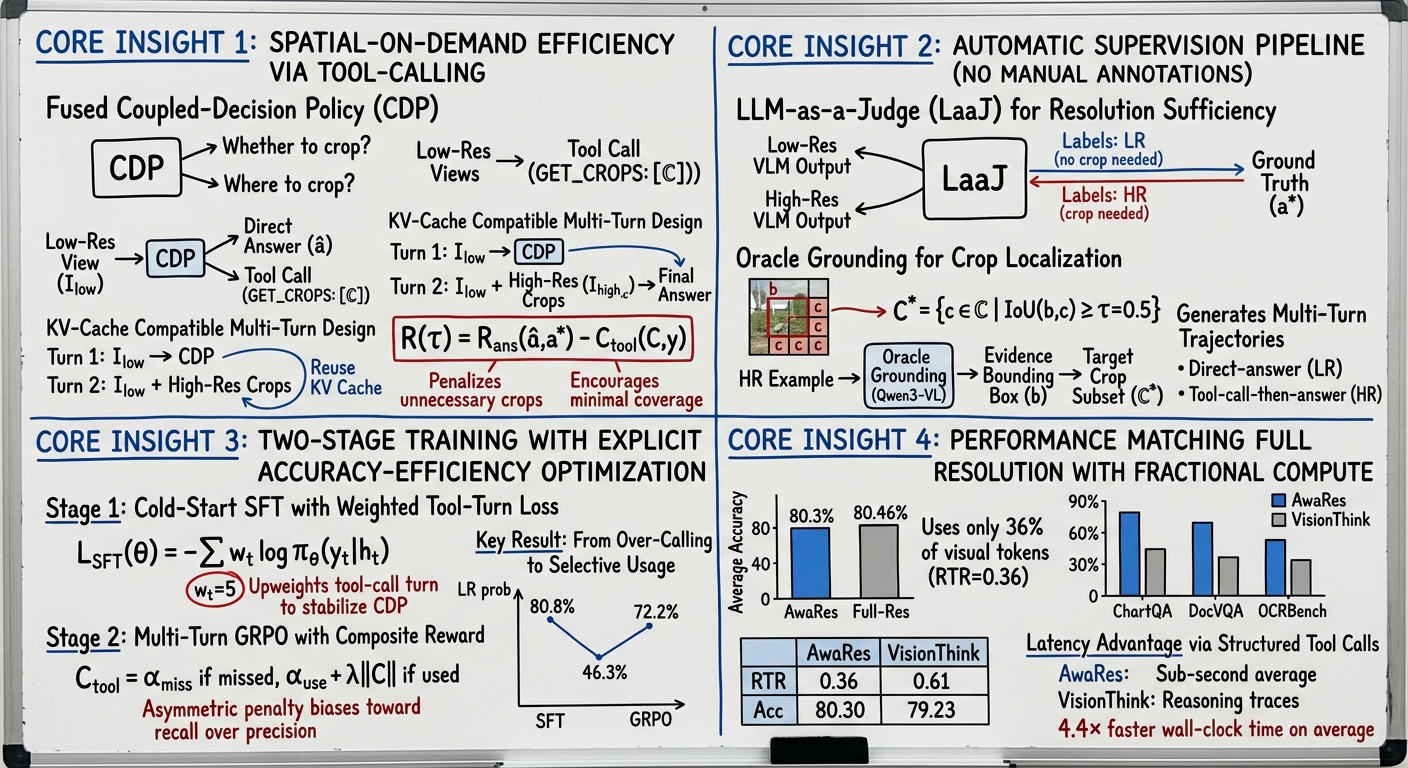

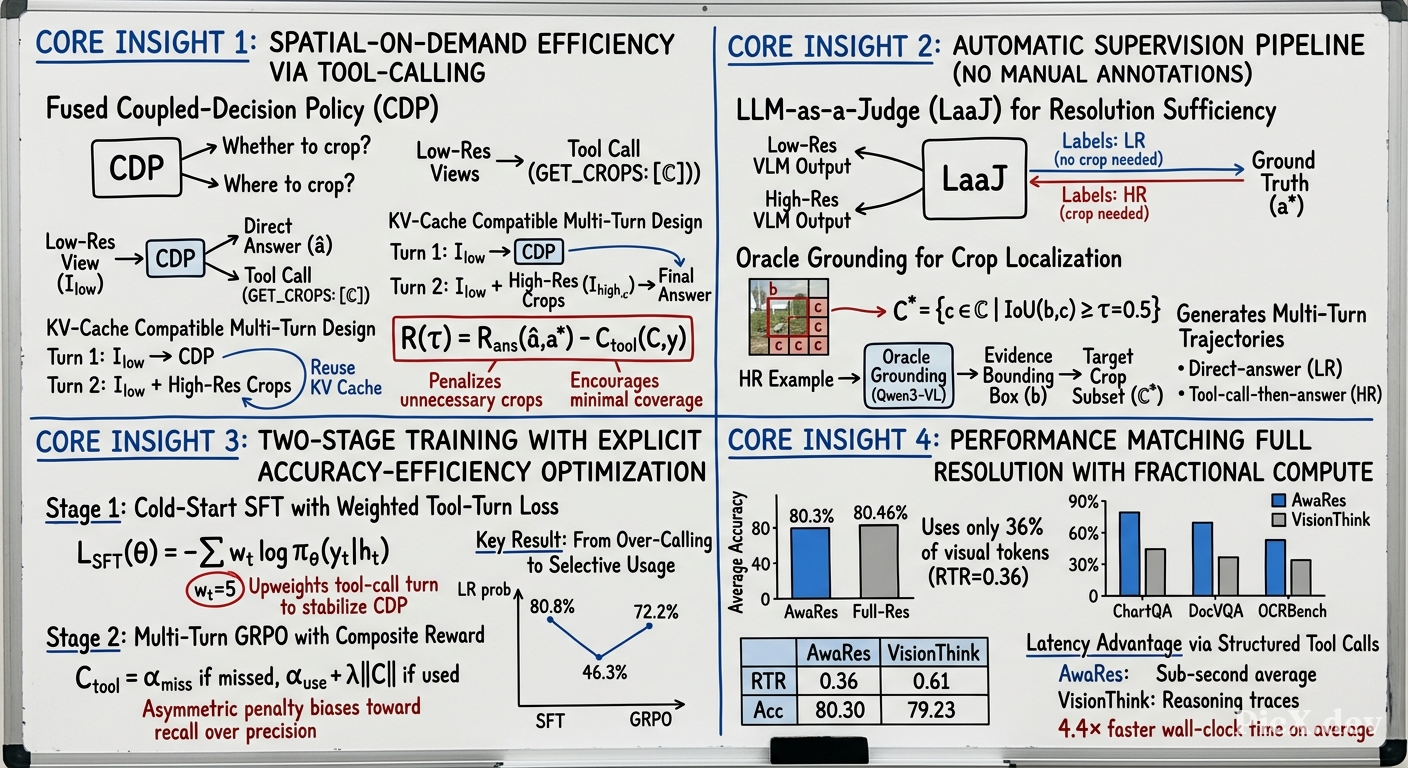

• Spatial-on-Demand Efficiency: Introduces AwaRes, a framework that processes a low-resolution global image view by default and uses tool-calling to request only the specific high-resolution image crops needed to answer a query, dramatically reducing computational costs.
• Automatic Data Curation: Proposes a novel pipeline to generate training data without manual spatial annotations, using an LLM-as-a-Judge (LaaJ) to determine when crops are needed and an oracle grounding model to localize where to crop.
• Two-Stage Training: Employs a cold-start Supervised Fine-Tuning (SFT) stage to teach the tool protocol, followed by multi-turn Group Relative Policy Optimization (GRPO) with a composite reward that optimizes for both answer correctness and crop usage efficiency.
• Strong Performance-Efficiency Trade-off: Achieves accuracy nearly matching full high-resolution processing (80.3% vs. 80.46% on average) while using only 36% of the visual tokens, outperforming fixed-budget pruning and adaptive resolution escalation baselines.

Introduction and Theoretical Foundation

Vision-Language Models (VLMs) require high-resolution inputs for detail-sensitive tasks (e.g., document QA, chart understanding), but this leads to a massive increase in visual tokens and computational cost. Existing efficiency methods fall short: token pruning methods use irregular patterns that hinder deployment, and resolution escalation methods (e.g., VisionThink) retrieve the entire high-resolution image when needed, wasting computation on irrelevant regions.

The key insight is that the need for high fidelity is spatially sparse—many questions require fine detail in only a small portion of the image (e.g., a single chart value, a table cell). Therefore, determining where to look is as important as whether to look.

AwaRes (VLM that is Aware to Resolution) addresses this by implementing a spatial-on-demand inference framework. It uses a simple tool-calling interface: the model first sees a low-resolution image, and if more detail is needed, it requests specific high-resolution crops. This multi-turn structure is compatible with KV-caching, making it practical for deployment. The core challenge is training a Coupled-Decision Policy (CDP) that jointly decides (i) whether additional resolution is needed and (ii) where to acquire it by selecting a subset of crops.

Methodology

The method formalizes a multi-turn interaction and uses a two-stage training pipeline with automatically curated data.

3.1 Problem Setup

Given an image-question-answer triple $(I, q, a^*)$, the model is first shown a low-resolution view $I_{low}$. It then chooses an action based on a policy:

$$\pi_\theta(C | q, I_{low}), \quad C \subseteq \mathcal{C}$$

where $\mathcal{C}$ is a predefined set of crop candidates. The actions are:

1. Direct answer ($C = \emptyset$): Produce answer $\hat{a}$ using only $(q, I_{low})$.
2. Crop request + answer ($C \neq \emptyset$): Emit a tool call for a subset $C_{req} \subseteq \mathcal{C}$. The tool returns high-resolution crops $\{I_{c}^{high}\}_{c \in C_{req}}$, which are appended to the context, and the model then produces $\hat{a}$.

3.2 Data Curation: Automatic Supervision for Crop Requests

A three-stage pipeline creates training trajectories without manual annotations:

1. Resolution-Sufficiency Labeling (When to Crop): A base VLM $T$ generates answers from both low-res and full-res inputs: $\hat{a}_{low} = T(q, I_{low})$, $\hat{a}_{full} = T(q, I)$. An LLM-as-a-Judge (LaaJ) compares both predictions to the ground truth $a^*$. If $\hat{a}_{low}$ is judged correct (or ties), label LR (no crop needed); otherwise, label HR.
2. Crop Target Construction (Where to Crop): For HR examples, an oracle grounding model $G$ (Qwen3-VL) localizes the evidence, producing a bounding box $b$. This box is mapped to the discrete crop set $\mathcal{C}$ (four quadrants, center, four half-image regions, full-image). The target crop subset is: $$C^* = \{ c \in \mathcal{C} \ | \ \text{IoU}(b, c) \geq \tau \}$$ where $\tau = 0.5$.
3. Supervised Tool-Use Trajectories: Creates two transcript types:
   • Direct-answer (LR): Single-turn output of $a^*$.
   • Tool-call-then-answer (HR): First turn: tool call selecting $C^*$. Second turn: output $a^*$ conditioned on $I_{low}$ and the retrieved crops $\{I_{c}^{high}\}_{c \in C^*}$.

3.3 Cold-Start Supervised Reference Policy (SFT)

The model is fine-tuned on the mixture of trajectories from §3.2 to learn the tool protocol and produce a reference policy $\pi_{ref}$. The loss is a weighted negative log-likelihood:

$$\mathcal{L}_{\text{SFT}}(\theta) = -\sum_{t=1}^{T} w_t \log \pi_\theta(y_t | h_t)$$

The tool-call turn weight $w_t$ is upweighted (e.g., to 5) to stabilize learning of the critical first-turn CDP decision.

3.4 Multi-Turn GRPO

To refine efficiency and correct over-requesting tendencies from SFT, Group Relative Policy Optimization (GRPO) is applied, initialized from $\pi_{ref}$ and regularized towards it via a KL penalty.

• Reward Design: A scalar reward for a completed trajectory $\tau$ is: $$R(\tau) = R_{\text{ans}}(\hat{a}, a^*) - C_{\text{tool}}(C, y)$$
  • Answer Reward ($R_{\text{ans}}$): Semantic correctness measured by cosine similarity between sentence-transformer embeddings of $\hat{a}$ and $a^*$.
  • Tool-Use Cost ($C_{\text{tool}}$): Asymmetric penalty: $$C_{\text{tool}}(C, y) = \begin{cases} \alpha_{\text{miss}} & \text{if } y = \text{HR and } C = \emptyset \text{ (missed tool-call)} \\ \alpha_{\text{use}} + \lambda \|C\| & \text{if } C \neq \emptyset \text{ (tool usage)} \\ 0 & \text{if } y = \text{LR and } C = \emptyset \end{cases}$$ where $\|C\|$ is the total fraction of image area covered by selected crops. This encourages recall (penalizing missed calls) and efficiency (penalizing large crop areas).
• GRPO Optimization: For each prompt $x$, a group of $G$ trajectories $\{\tau_1, ..., \tau_G\}$ is sampled. The advantage for each is computed relative to the group: $$\hat{A}_i = \frac{R(\tau_i) - \mu_G}{\sigma_G + \epsilon}$$ The objective is a PPO-style clipped objective with KL regularization: $$\mathcal{L}_{\text{GRPO}}(\theta) = \mathbb{E}_{x \sim \mathcal{D}} \left[ \frac{1}{G} \sum_{i=1}^{G} \frac{1}{|\tau_i|} \sum_{t=1}^{|\tau_i|} \min\left( r_t^{(i)} \hat{A}_i, \ \text{clip}(r_t^{(i)}, 1-\epsilon, 1+\epsilon) \hat{A}_i \right) - \beta D_{\text{KL}}(\pi_\theta \| \pi_{\text{ref}}) \right]$$ where $r_t^{(i)} = \frac{\pi_\theta(a_t^{(i)} | x, a_{<t}^{(i)})}{\pi_{\text{old}}(a_t^{(i)} | x, a_{<t}^{(i)})}$.

Empirical Validation / Results

Evaluation is conducted on six benchmarks spanning document understanding and general visual QA. The base model is Qwen2.5-VL-7B-Instruct. Efficiency is measured by Retained Token Ratio (RTR): $RTR_i = T_i / T_{\text{full}}$, where $T_i$ is tokens processed by AwaRes and $T_{\text{full}}$ is tokens for full-resolution processing.

Table 1: Main results across vision-language benchmarks.

Key Findings:

• Accuracy & Efficiency: AwaRes nearly matches full-resolution accuracy (80.30% vs. 80.46%) while using only 36% of the visual tokens on average.
• Vs. Baselines: Outperforms fixed-budget pruning methods (e.g., VisionZip at 70% RTR has 76.47% accuracy) and the adaptive baseline VisionThink (79.23% accuracy, 0.61 RTR).
• Latency: AwaRes achieves sub-second average latency across benchmarks, while VisionThink suffers from long reasoning traces (e.g., 4.3s vs. 0.6s on ChartQA).
• Policy Evolution: The GRPO stage successfully corrects the SFT model's tendency to over-request crops, shifting the policy towards more selective tool use.

Ablation Studies confirmed the importance of:

• LaaJ for Labeling: High agreement (96.88%) with an alternative judge (DeepSeek-V3.2), while ANLS-based labeling degraded performance.
• Tool-Turn Weighting ($w_t=5$): Improved cold-start accuracy and tool-call reliability.
• Two-Stage Training: GRPO-only training failed to learn effective tool use, while SFT-only led to over-cropping (high RTR). The combined approach was essential.
• Reward Components: The asymmetric tool-cost and area penalty ($\lambda$) were necessary to achieve low RTR.

Theoretical and Practical Implications

• Theoretical: Demonstrates the feasibility and effectiveness of learning a spatially-aware, adaptive perception policy within a VLM. The CDP formulation treats the "when" and "where" decisions as inherently coupled, which is more aligned with the task structure than separate modules.
• Practical: Provides a deployment-friendly efficiency solution. The tool-calling interface and multi-turn KV-cache reuse integrate smoothly with existing inference stacks (e.g., vLLM). The automatic data curation pipeline removes the need for costly manual spatial annotations, enabling scalable training. AwaRes offers a direct path to maintaining high-detail VLM capabilities under tight compute and latency budgets.

Conclusion

AwaRes presents a spatial-on-demand inference framework that resolves the accuracy-efficiency trade-off in high-resolution VLM inference by selectively retrieving only necessary high-resolution crops via tool-calling. Trained with an automatic curation pipeline and a two-stage SFT+GRPO approach, it matches full-resolution performance at a fraction of the cost.

Future Directions:

1. Extending crop selection from a discrete set to continuous bounding box predictions.
2. Generalizing the approach to video understanding, exploiting temporal sparsity.
3. Exploring progressive multi-step perception strategies that allocate resolution dynamically.
