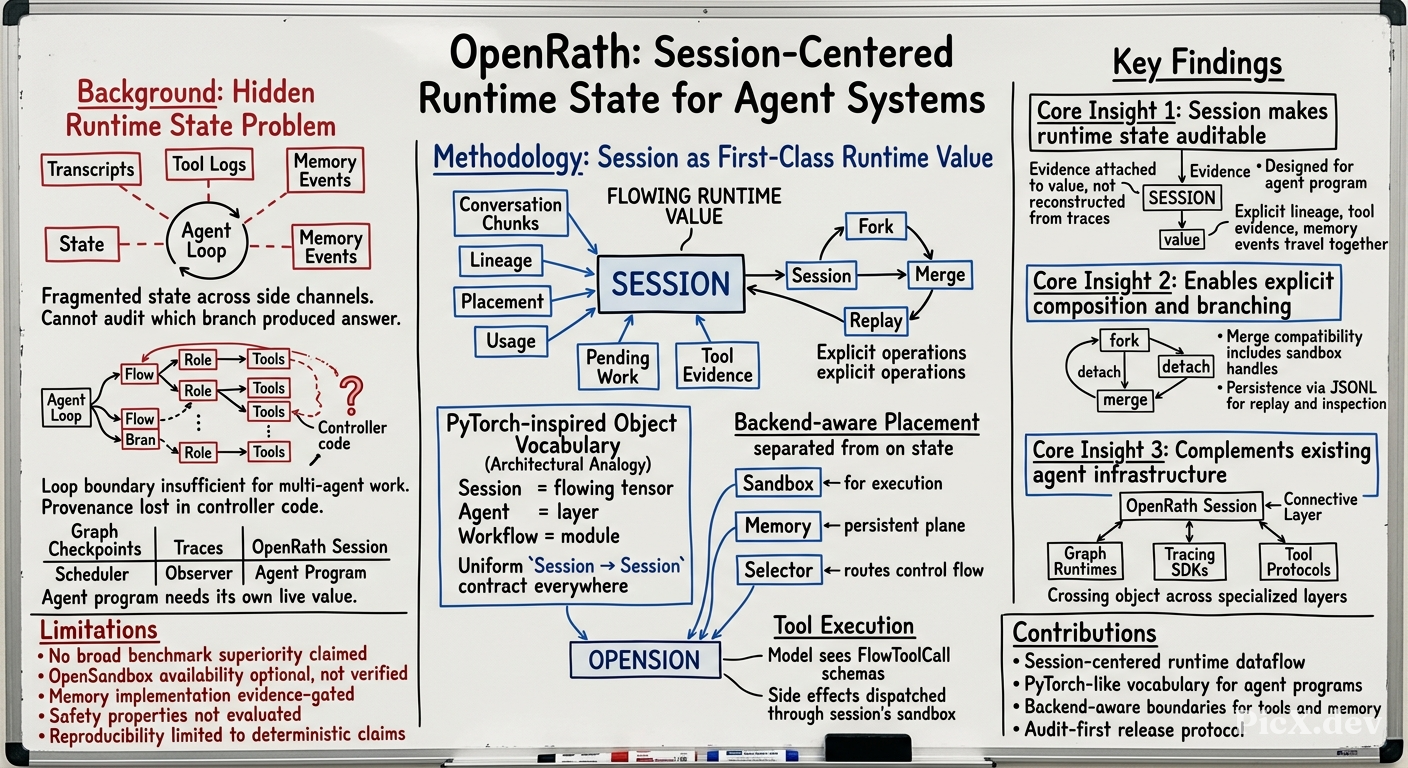

Visual Summary | OpenRath: Session-Centered Runtime State for Agent Systems

Summary (Overview)

Key contribution: OpenRath introduces Session as a first-class runtime value for multi-agent systems, analogous to a tensor in PyTorch but for agent runtime state. The Session is branchable, inspectable, replayable, backend-aware, and composable, addressing the hidden-runtime-state problem where conversation chunks, tool effects, memory events, workspace placement, branch provenance, and replay evidence are fragmented across side channels.
Programming model: A compact vocabulary of objects — Session, Sandbox, Tool, Agent, Memory, Workflow, and Selector — all follow the same Session → Session contract, making composition, forking, merging, handoff, and replay ordinary program operations rather than reconstructed states.
Backend-aware boundaries: OpenRath separates runtime state from execution backends (local, OpenSandbox, MCP) and memory backends, so tool evidence, sandbox placement, and memory interactions become explicit session events.
Audit-first release: The report maps all claims to evidence packets (lineage export, local sandbox, workflow transcript, focused tests, visual QA, claim ledger) and explicitly scopes broader benchmark, memory-quality, and live-provider claims to follow-on evaluation.

Introduction and Theoretical Foundation

Problem Statement

Modern agent systems suffer from fragmented runtime state. A long agent run — planning, forking branches, calling tools, editing files in sandboxes, recalling memory, compressing context — produces a correct final answer but leaves auditors unable to answer simple questions: Which branch produced the result? Which tool modified which file? Which memory item was recalled? What evidence was removed during compression? The state is scattered across controller code, tool logs, memory stores, workspace state, and provider traces.

Central Claim

The paper’s central thesis is that agent systems benefit from a first-class runtime state, and OpenRath proposes Session as that state. The design is inspired by PyTorch’s architectural pattern (not its tensor mathematics): a central flowing value, reusable transformations with a uniform forward interface, explicit placement (tensor.to(device) → session.to(backend)), and persistent state (parameters → Memory). The analogy is architectural: agent runtimes need a stable flowing value, not that agent systems are neural networks.

Theoretical Motivation

Three types of runtime records exist (Table 1):

Record	Written for	What it primarily holds
Graph checkpoint	The scheduler	Where execution is in the control flow (resume/time-travel)
Trace span	The observer	What was observed (model calls, tool calls, guardrails)
Session (OpenRath)	The agent program	The live value agents fork, merge, hand off, replay; lineage, tools, placement, memory, usage travel with it

A graph checkpoint or trace span is written for schedulers or observers; a Session is written for the agent program itself. This is why fork, merge, and replay become first-class runtime operations in OpenRath rather than reconstructions from side channels.

Methodology

Object Vocabulary (Table 3)

Object	Runtime boundary
Session	Flowing runtime value for chunks, placement, lineage, usage, pending work, tool evidence, and memory evidence when enabled.
Agent	Reusable `Session → Session` transformation with local prompt, provider, tools, and memory policy.
Tool	Model-visible callable operation backed by schema validation, session context, sandbox dispatch, and returned evidence.
Sandbox	Placement boundary for file, command, code, and external tool execution.
Memory	Intended persistent-state plane for recall and commit across runs, separate from prompt text.
Workflow	Composition surface for agents, tools, branches, compression, memory, and child workflows.
Selector	Runtime router over self-describing workflows: reads the current session and picks the next workflow, so dynamic control flow stays explicit.

Key design principle: each object is narrowly scoped. Agent does not own conversation graph (lineage belongs to Session); Tool does not own placement (executes through active sandbox); Workflow does not create separate orchestration state (composes over sessions); Memory does not become hidden prompt text (recall/commit are visible runtime events).

Runtime Architecture

Session lifecycle (Figure 4): Create → Place → Transform → Branch → Persist → Release.

Branching: fork duplicates state preserving parent relation; detach starts new lineage root; merge joins compatible sessions (must share a live sandbox handle or target same unbound backend). Merge compatibility makes placement part of the runtime graph.
Tool execution (Figure 5): Model sees FlowToolCall schemas; session loop resolves calls by name, validates arguments, dispatches backend payloads through the session’s sandbox. Results/errors return as tool-result chunks.
Backend boundary (Table 5): Placement intent, resource lifetime, capability claim, concrete execution, evidence return — all scoped to the session’s sandbox handle.

Multi-Agent Design

Multi-agent composition uses the same Session → Session contract (Table 6). Patterns include:

One agent applied to many sessions (fresh, forked, resumed)
Many agents sharing one state (specialist agents each consume/return Session)
Nested workflows hiding internal structure behind forward(session)

No second runtime object (hidden message bus, controller-only trace) is introduced.

Empirical Validation / Results

Implementation Milestones (Table 7)

Surface	Status
Session core	Implemented: ordered chunks, fork/detach/merge, usage accounting, JSONL lineage export. Exercised by focused tests.
Backend placement	Local execution verified; OpenSandbox optional (unconfigured in this environment).
Tool layer	Implemented: model-visible schemas with backend-dispatched side effects. Custom-tool and MCP examples.
Agent and workflow	Implemented composition over `Session → Session` contract, including scripted multi-stage workflow.
Provider layer	Prerequisites in place; model quality out of scope.
Memory plane	Intended runtime plane; not yet substantiated by local module with tests.
Examples	Worked examples: lineage, backends, tools, streaming, usage, multi-agent workflows.

Release Evidence Protocol (Table 8)

Runtime claim	Current packet	Scope boundary
Session lineage is inspectable	`lineage_export`: pass, deterministic	Proves exported branch metadata, not branching quality
Tool placement is auditable	`local_sandbox`: pass; `opensandbox_optional`: skip	Proves local placement evidence, not OpenSandbox parity
Workflows compose session state	`workflow_transcript`: pass, deterministic	Proves composition shape, not live agent quality
Implementation contracts hold	`pytest_report`: pass	Does not cover every live integration
Provider prerequisites can be disclosed	`live_provider_manifest`: pass, redacted	Does not execute live inference
Memory is a session-visible plane	`memory_local`: skip	Evidence-gated until source anchors exist
Claim scope is tracked explicitly	`claim_ledger`: pass, ten claims	One evidence-gated claim: memory_runtime_plane
Report layout is reviewable	`visual_qa` and `layout_audit`: pass	Visual smoke, not final design approval

Current evidence supports five claims with operational packets, one partially supported, one supported only for prerequisites, one bibliography-backed positioning, one layout smoke, and one evidence-gated (memory). All deterministic claims are rebuildable.

Theoretical and Practical Implications

For Runtime Design

OpenRath provides a principled answer to the crossing-object problem in the agent runtime stack (Table 2). Multi-agent APIs, durable graph runtimes, tracing SDKs, tool/data protocols, and real-environment benchmarks each own one layer, but leave the question: What state moves between these layers? OpenRath’s Session is designed to be that crossing object — carrying chunks, lineage, sandbox, tools, and memory in one inspectable flow.

The key implication is that branchability, inspectability, and replayability become properties of the runtime value itself rather than of controller-side conventions or post-hoc traces. This makes multi-agent systems easier to compose, debug, review, and evaluate.

For Audit and Evaluation

Before broad benchmarks (coding suites, general-assistant evals), OpenRath argues the first question is: can the system preserve and expose the state needed to make those later evaluations meaningful? Its packet-first evaluation protocol separates runtime semantics from model choice, prompt design, and task distribution. This makes evidence rebuildable and reviewer-friendly.

Limitations and Scoped Claims (Table 9)

Boundary	Current posture	Required for stronger claim
Benchmarking	Deterministic smoke runner & evidence packets, not broad baseline/metric benchmark	Pinned workloads, baseline adapters, live-provider runs, reviewer-scored artifacts
Memory	Intended runtime plane; evidence-gated	Restored local-memory APIs, examples, tests; recall/commit quality evaluation
Multi-agent control	Session exposes branch/merge/tool/lineage, but no policy layer	Role permissions, tool authority, memory-commit gates, merge policy, human-review requirements
Safety	No safety property claimed; tool use enlarges attack surface (indirect prompt injection)	Evaluation against agent/web/embodied safety benchmarks + tool-authority limits
Reproducibility	Deterministic claims support inspection; live outputs provider-dependent	Pinned source snapshots, provider manifests, sandbox images, cached payloads

Conclusion

OpenRath’s contribution is deliberately narrow: it makes the state that agents operate on explicit. A multi-agent system is not only a prompt graph, tool registry, trace stream, or benchmark harness — it is a runtime in which conversation chunks, branch lineage, sandbox placement, tool effects, memory interactions, usage, artifacts, and replay evidence must remain connected.

Session is the proposed boundary for that runtime state. Because evidence lives in the value the program already passes around (rather than in a side channel reconstructed afterward), it stays available exactly when a reviewer needs it. OpenRath is complementary to graph runtimes, tracing SDKs, tool protocols, sandbox providers, and real-environment benchmarks.

The durable thesis: reliable agent systems need a first-class runtime value, and OpenRath makes Session that value. New capabilities should preserve the same boundary — transform a Session, attach evidence to a Session, or expose a backend effect through a Session — to keep the system from becoming a collection of hidden side channels. As deep learning made the tensor the value a network is built around, the next generation of agent systems needs the same move: a single runtime value that everything reads, transforms, and explains.
