Summary (Overview)

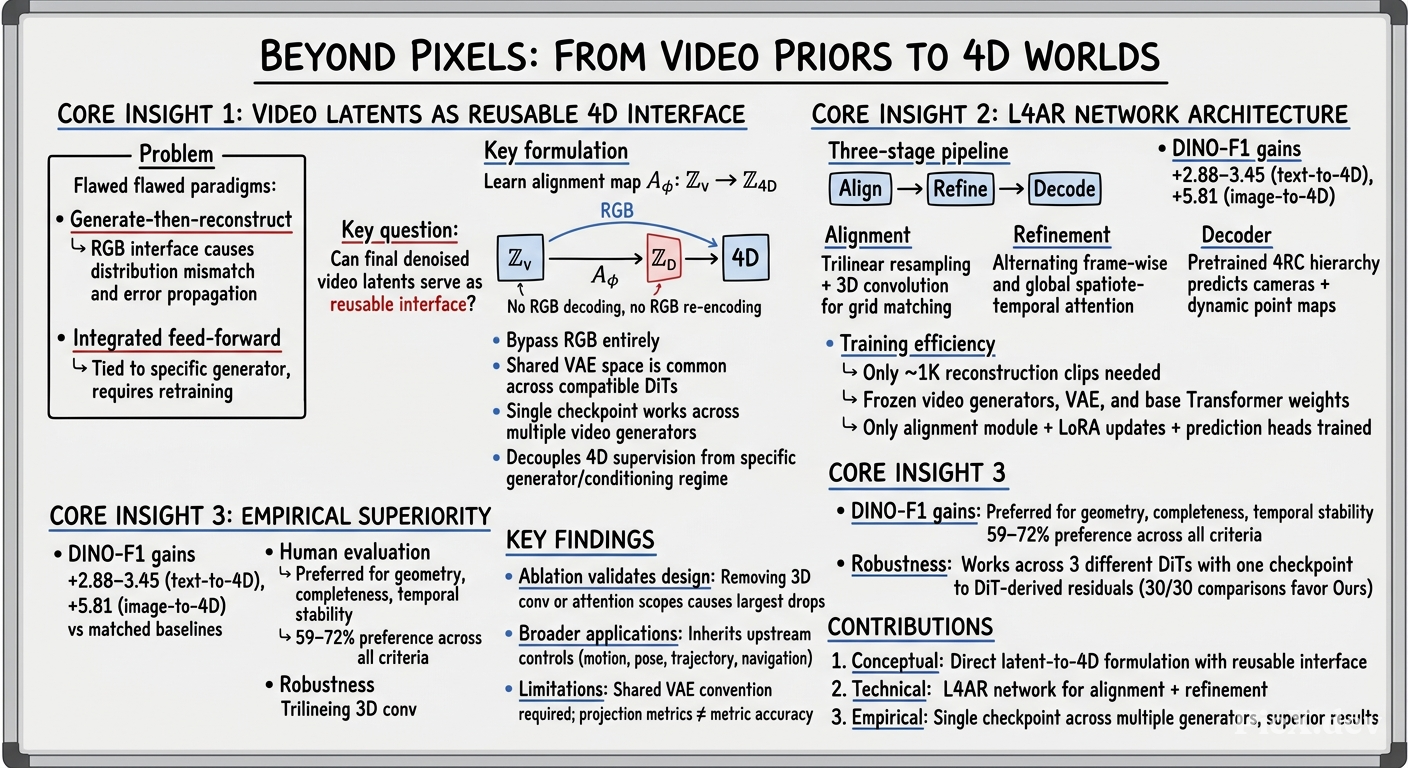

• Core contribution: Introduces Latent-to-4D, a novel framework for direct 4D generation that bypasses RGB decoding by using the final denoised VAE latents of video diffusion models as a reusable interface to explicit 4D prediction.
• Key insight: Video generators sharing the same VAE checkpoint, latent normalization, and compression convention produce latents in a common representation space, enabling a single geometry-supervised pathway to serve multiple compatible DiTs without retraining.
• Technical innovation: The L4AR (Latent-to-4D Alignment and Refinement) network aligns video latents with the 4D token grid via trilinear resampling and 3D convolution, then refines them through alternating frame-wise and global spatiotemporal attention.
• Empirical results: A single checkpoint trained on ~1K reconstruction clips transfers unchanged across three DiTs (Wan2.1-T2V-14B, Wan2.1-T2V-1.3B, Wan2.2-I2V-A14B), surpassing matched Wan+4RC cascades by 2.88–3.45 DINO-F1 points on Text4D-200 and 5.81 points on I4D-200.
• Human evaluation: Users prefer Latent-to-4D outputs for geometric plausibility, completeness, and temporal stability, with preference rates of 59.2–72.1% across tasks.

---

Introduction and Theoretical Foundation

Background and Motivation

4D generation synthesizes dynamic 3D scenes with explicit geometry and motion from text or image conditions, enabling applications in virtual production, VR/AR, simulation, and embodied intelligence. Recent advances combine video generation with feed-forward 4D reconstruction through two paradigms:

1. Generate-then-reconstruct: Synthesize RGB videos first, then convert to 4D via a separate reconstruction model. This preserves generator modularity but suffers from distribution mismatch and error propagation through the RGB interface.

2. Integrated feed-forward generation: Make geometry a native output of the generative process. This transfers video priors more directly but binds 4D prediction to a specific generator, requiring retraining when switching models.

Key Theoretical Insight

The central question posed by the authors:

Can final denoised video latents serve as a reusable interface to explicit 4D prediction across compatible DiTs?

The theoretical foundation rests on the observation that video diffusion models sharing the same VAE checkpoint produce final denoised latents in a common representation space, regardless of differences in DiT backbones or conditioning regimes. This latent space lies upstream of RGB decoding, providing a natural interface point where a single geometry-supervised pathway can access appearance, motion, and conditioning information from multiple compatible generators.

Problem Formulation

The authors formalize direct latent-to-4D generation as a cross-representation mapping. Let $(E_v, D_v)$ denote the spatiotemporal VAE, $\mathcal{Z}_v$ its latent space, and $\mathcal{Z}_{4D}$ the structured token space of a pretrained 4D reconstructor. The goal is to learn an alignment map:

$$\mathcal{A}_\phi: \mathcal{Z}_v \to \mathcal{Z}_{4D}, \qquad \mathbf{Q}^{(0)} = \mathcal{A}_\phi(\mathbf{z}_v),$$

such that the aligned tokens can be refined and decoded into a discrete 4D scene:

$$\mathcal{Y} = \{(\mathbf{C}_t, \mathbf{P}_t)\}_{t=1}^T, \qquad \mathbf{P}_t \in \mathbb{R}^{H \times W \times 3},$$

where $\mathbf{C}_t$ is the camera at time $t$ and $\mathbf{P}_t$ is a dense point map in a shared world coordinate system.

The conventional generate-then-reconstruct pipeline is expressed as:

$$\widehat{\mathcal{Y}}_{rgb} = R(D_v(\mathbf{z}_v)),$$

which introduces an RGB representation boundary through which artifacts propagate. The proposed direct mapping $\mathcal{Z}_v \to \mathcal{Z}_{4D} \to \mathcal{Y}$ bypasses both RGB decoding and re-encoding.

---

Methodology

Overall Architecture

The Latent-to-4D framework factorizes the direct mapping into three components:

$$\widehat{\mathcal{Y}} = \mathcal{D}_\omega\left(\mathcal{H}_{\psi, \Delta\psi}\left(\mathcal{A}_\phi(\mathbf{z}); \mathbf{S}\right)\right),$$

where:

• $\mathcal{A}_\phi$: Alignment Module
• $\mathcal{H}_{\psi, \Delta\psi}$: Spatiotemporal Refinement Module (frozen weights $\psi$ + trainable LoRA updates $\Delta\psi$)
• $\mathcal{D}_\omega$: 4D Decoder
• $\mathbf{S}$: Frozen camera and time tokens

Alignment Module

The VAE latent cannot be consumed directly by the 4D hierarchy due to mismatches in temporal resolution, spatial grid, and feature dimension. The alignment process:

1. Trilinear resampling ($\mathcal{R}$): Matches the required spatiotemporal resolution
2. Learned 3D convolution ($\mathcal{S}_\phi$): Aggregates local spatiotemporal neighborhoods and projects channels to the 4D hierarchy's feature dimension

The aligned tokens are:

$$\mathbf{Q}^{(0)} = \mathcal{A}_\phi(\mathbf{z}) = \mathrm{Flatten}(\mathcal{S}_\phi(\mathcal{R}(\mathbf{z}))) \in \mathbb{R}^{T \times M \times d},$$

where $T$ is the number of frames, $M$ is the number of spatial tokens per frame, and $d$ is the token dimension.

Spatiotemporal Refinement Module

A hierarchical refinement module combines two attention modes:

• Frame-wise attention: Reshapes tokens to $(BT, M, d)$ and consolidates spatial structure within each frame
• Global attention: Operates on $(B, TM, d)$ to exchange information across all spatial locations and time steps

The hierarchy first establishes per-frame structure, then alternates between the two modes. Intermediate representations at multiple depths are concatenated to provide both spatial detail and sequence-level context.

4D Decoder

The decoder converts the refined feature hierarchy into explicit dynamic structure. For each frame $t$ and pixel $u$, a multi-level geometry head predicts:

• Depth value $\hat{d}_t(u)$
• World-space ray (origin $\hat{\mathbf{o}}_t$ and unit direction $\hat{\mathbf{r}}_t(u)$)
• Confidence values

The camera head predicts $\hat{\mathbf{C}}_t$ via a 9D pose–field-of-view parameterization. World-space points are recovered as:

$$\hat{\mathbf{P}}_t(u) = \hat{\mathbf{o}}_t + \hat{d}_t(u)\hat{\mathbf{r}}_t(u).$$

Training Objective

The total loss combines three terms:

$$\mathcal{L} = \mathcal{L}_{unc} + \mathcal{L}_{cam} + \mathcal{L}_{geom},$$

where:

• $\mathcal{L}_{unc}$: Uncertainty-aware term with confidence-weighted depth, depth-gradient, and world-ray losses
• $\mathcal{L}_{cam}$: Camera translation, rotation, and field-of-view supervision
• $\mathcal{L}_{geom}$: Metric depth and ray supervision with mean/tail errors on world-space points and surface-normal loss

Training Details

• Frozen components: Video generators, VAE, original Transformer weights, camera/time tokens, motion decoder, tracking head
• Trainable components: Alignment Module, prediction heads, and rank-16 LoRA adaptation of the refinement hierarchy
• Data: 1,143 clips from six reconstruction datasets (final training stage)
• Initialization: From a 4RC-aligned latent adapter

---

Empirical Validation / Results

Benchmarks and Metrics

• Text4D-200 and I4D-200: Locked 200-case text- and image-conditioned benchmarks
• Metrics: Text CLIP, RGB-reference CLIP-I, DINO global similarity, valid-patch DINO matching, DINO set F1 (all ×100, higher is better)
• Evaluation protocol: Two off-axis cameras render each predicted point sequence; generated RGB used only for evaluation and coloring

Quantitative Results

Table 1: 4D generation on Text4D-200 and I4D-200

Key findings:

• DINO-F1 gains of 2.88–3.45 points over matched 4RC cascades on Text4D-200
• 5.81-point DINO-F1 gain over matched Wan2.2+4RC on I4D-200
• One checkpoint gives nearly identical performance with both text DiTs, confirming reuse without retraining
• CogVideoX-5B+4RC retains the highest RGB-ref. CLIP-I (not a uniform win on every metric)

Human Evaluation

Table 2: User preference for Ours over baselines (%) — 50 participants, 50 sampled cases per benchmark, 10 ratings per case

All intervals exceed 50%, with strongest preferences for geometry and completeness.

Component Ablations

Table 3: Component ablation on 7-Scenes and NRGBD (Acc/Comp in cm; lower is better except NC)

Every removal degrades performance; the largest drops arise without the 3D convolution or either attention scope.

Sensitivity to DiT-Derived Residuals

A controlled diagnostic projects the empirical near-terminal residual $\mathbf{z}_{45} - \mathbf{z}_{50}$ onto the Grid-Align width-null space and adds it to observed-video latents. All 30 comparisons favor Ours. At $\rho = 0.6$, point-map drift is 0.0053/0.0047 for Ours versus 0.3827/0.3160 for the baseline on 7-Scenes/NRGBD, with the same trend for camera estimation.

---

Theoretical and Practical Implications

Theoretical Implications

1. Reusable interface paradigm: The work establishes that VAE latent spaces can serve as a decoupling layer between generative video models and task-specific decoders, challenging the assumption that RGB is a necessary intermediate representation for 4D generation.

2. Modularity without retraining: By demonstrating that one geometry-supervised pathway serves multiple DiTs, the paper shows that 4D supervision can be decoupled from specific generator architectures or conditioning regimes — a significant step toward composable generative systems.

3. Distribution tolerance: L4AR trained only on observed-video encodings generalizes to generated latents from three conditional DiTs, suggesting the alignment module learns a robust cross-representation mapping rather than overfitting to a specific latent distribution.

Practical Implications

1. Computational efficiency: Bypassing RGB decoding and re-encoding eliminates an entire processing stage, reducing computational overhead and avoiding error accumulation.

2. Generative control inheritance: The same L4AR checkpoint inherits upstream motion, appearance, pose, trajectory, manipulation, and navigation controls (Figures 7–8), enabling complex conditional 4D generation without task-specific training.

3. Scalability: Training on only ~1K reconstruction clips (versus large-scale video data) makes the approach practical for domains where 4D supervision is scarce.

4. Ecosystem compatibility: The framework's compatibility with multiple generators sharing a VAE suggests a path toward a more unified ecosystem where 4D capabilities can be added to new video models without retraining.

---

Conclusion

Summary of Contributions

1. Conceptual: Formulated direct latent-to-4D generation, treating final denoised VAE latents as a reusable interface that bypasses generated RGB and decouples 4D supervision from specific generators.

2. Technical: Introduced Latent-to-4D with the L4AR network (alignment + hierarchical refinement), trained on ~1K clips and transferring unchanged across multiple compatible DiTs.

3. Empirical: Demonstrated superior DINO-F1 scores on Text4D-200 and I4D-200, with human raters preferring outputs for geometric plausibility, completeness, and temporal stability.

Limitations

• Evidence is limited to a shared VAE convention; compatibility across different VAE families remains unexplored
• Projection-based evaluation does not establish metric accuracy for generated scenes
• The approach requires video generators to share the same VAE checkpoint, latent normalization, tensor layout, and compression convention

Future Directions

The authors' work opens several avenues for future research:

• Extending the interface concept to cross-VAE settings
• Applying the latent-interface paradigm to other task-specific decoders (e.g., depth, segmentation, 3D reconstruction)
• Investigating whether the alignment approach scales to larger reconstruction datasets for further accuracy gains
• Exploring compatibility with a broader range of conditioning regimes and control mechanisms
