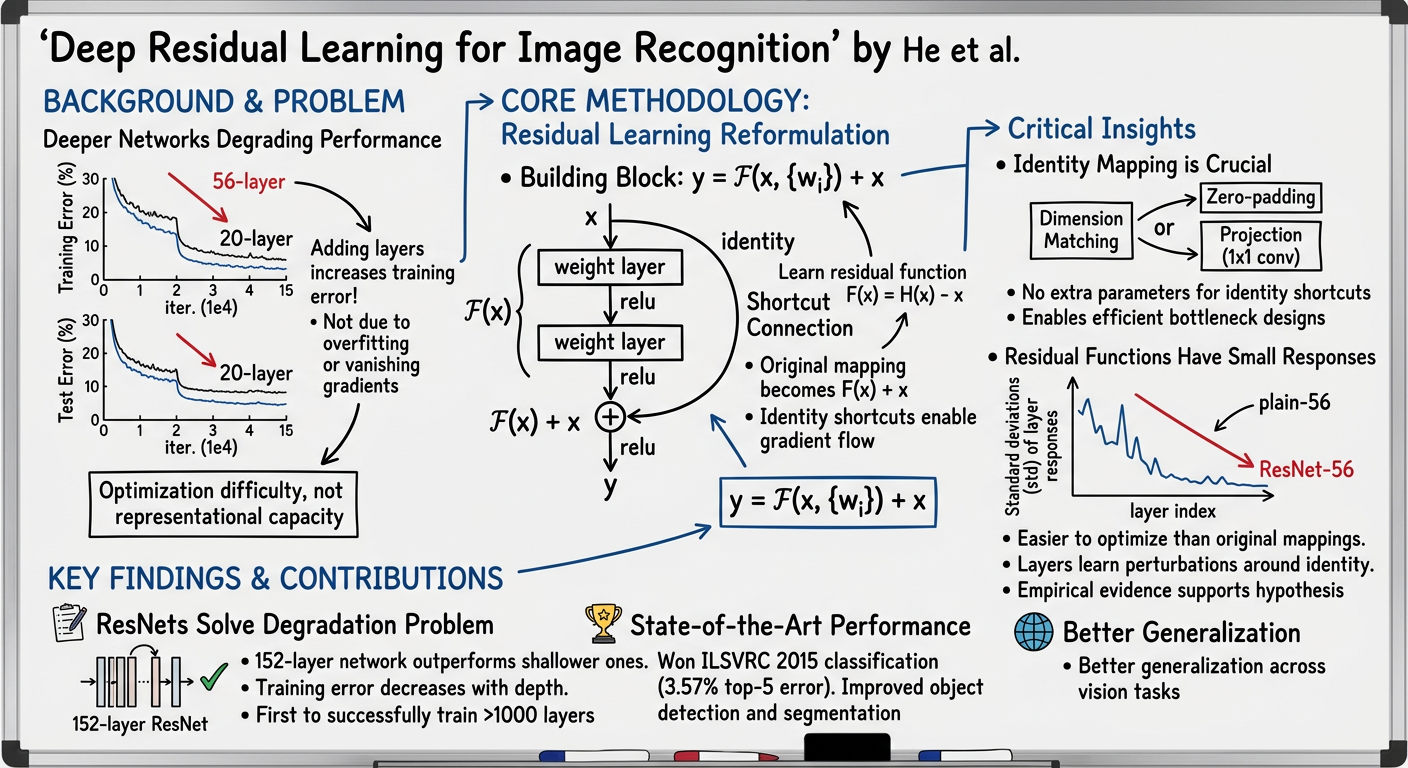

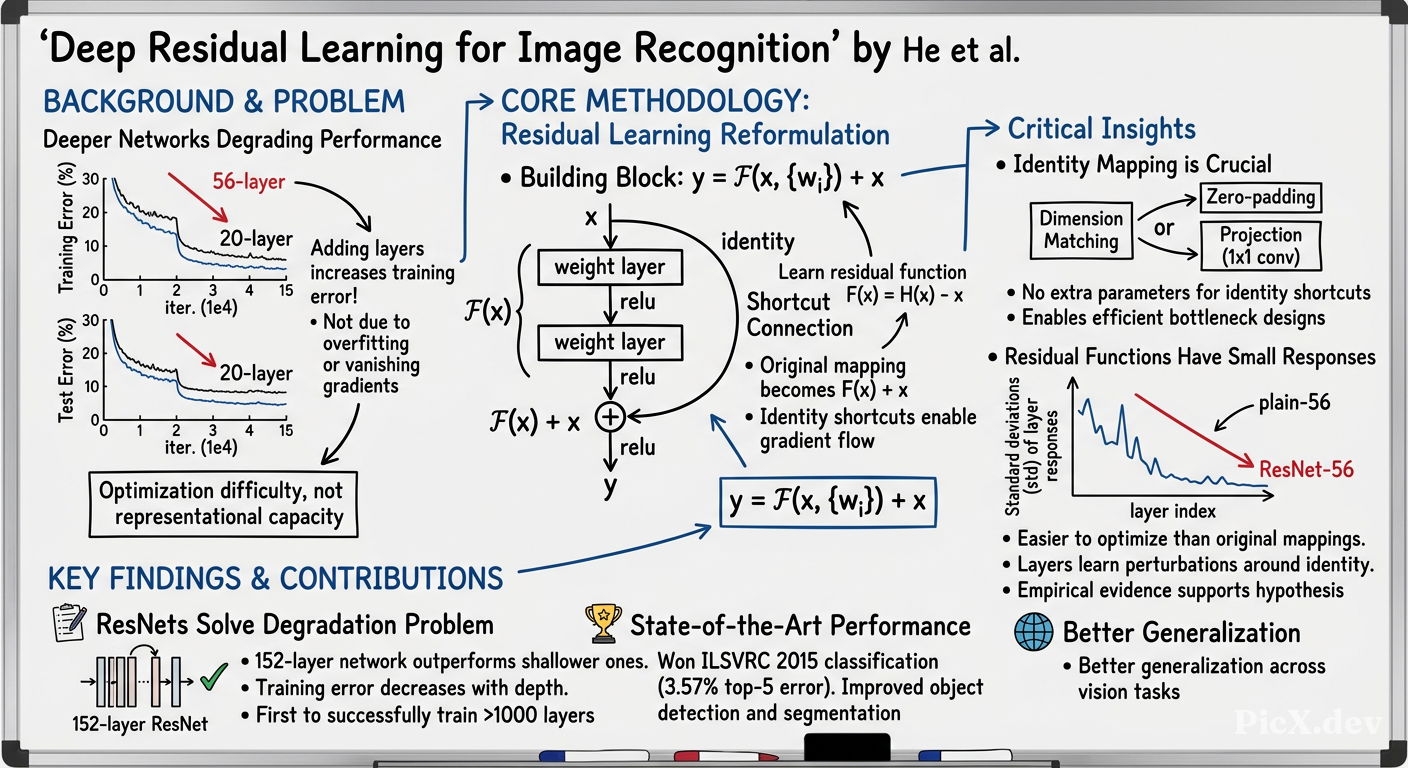

Deep Residual Learning for Image Recognition - Summary

Summary (Overview)

• Proposes Residual Networks (ResNets): A novel architecture that reformulates layers to learn residual functions $F(x) = H(x) - x$ instead of direct, unreferenced mappings $H(x)$.
• Solves the Degradation Problem: Enables the training of extremely deep networks (over 1000 layers) by using identity shortcut connections, which bypass optimization difficulties encountered in plain, very deep networks.
• Achieves State-of-the-Art Results: Won 1st place in ILSVRC 2015 classification with a top-5 error of 3.57% (ensemble) and set new benchmarks on ImageNet, COCO, and PASCAL VOC for classification, detection, and segmentation.
• Demonstrates Ease of Optimization: Residual networks show lower training error and faster convergence compared to their plain counterparts of equal depth, proving the framework's effectiveness.
• Provides Comprehensive Empirical Evidence: Validates the approach on ImageNet (up to 152 layers), CIFAR-10 (up to 1202 layers), and object detection tasks, showing consistent improvements from increased depth.

Introduction and Theoretical Foundation

The paper addresses a central problem in deep learning for computer vision: the degradation problem. While deeper neural networks are crucial for performance, simply stacking more layers leads to saturation and then a rapid increase in both training and test error. This is not caused by overfitting, as the training error itself increases. The authors argue that if a deeper network's added layers could learn identity mappings, its performance should be no worse than a shallower network. However, standard solvers struggle to learn these identity mappings.

The core theoretical insight is residual learning. Instead of having a stack of layers directly learn a desired underlying mapping $H(x)$, they are explicitly reformulated to learn a residual function $F(x) := H(x) - x$. The original mapping thus becomes $F(x) + x$.

$$H(x) = F(x) + x$$

This is motivated by the hypothesis that it is easier to optimize a residual mapping (pushing $F(x)$ towards zero) than to optimize the original, unreferenced mapping. If an identity mapping were optimal ($H(x) = x$), driving the residual $F(x)$ to zero is simpler than fitting an identity mapping through multiple nonlinear layers.

Methodology

The residual learning framework is implemented via shortcut connections that skip one or more layers.

Residual Building Block

The fundamental building block is defined as:

$$y = F(x, \{W_i\}) + x \tag{1}$$

Here, $x$ and $y$ are the input and output vectors. $F(x, \{W_i\})$ is the residual function to be learned (e.g., two or three weight layers). The operation $F + x$ is performed by an identity shortcut connection and element-wise addition. A ReLU activation follows the addition.

If the dimensions of $x$ and $F$ differ (e.g., when changing channels), a linear projection $W_s$ is used:

$$y = F(x, \{W_i\}) + W_s x \tag{2}$$

Network Architectures

• Plain Network: A VGG-style baseline with mostly 3x3 convolutions. The 34-layer version has 3.6 billion FLOPs.
• Residual Network (ResNet): The plain network is augmented with identity shortcut connections. For the 34-layer ResNet, shortcuts are added to each pair of 3x3 filters.
• Bottleneck Design: For deeper networks (50/101/152 layers), a more computationally efficient 3-layer block is used: 1x1 (channel reduction), 3x3, 1x1 (channel restoration). Identity shortcuts are crucial here to avoid doubling complexity.

Implementation Details

• Training: SGD with mini-batch size 256, weight decay 0.0001, momentum 0.9.
• Initialization: He initialization [13].
• Batch Normalization (BN): Applied after each convolution and before activation.
• Data Augmentation: Scale and aspect ratio augmentation, random horizontal flips, color augmentation.
• Learning Rate: Starts at 0.1 and is divided by 10 when error plateaus.

Empirical Validation / Results

ImageNet Classification

Key Finding: The degradation problem is clearly observed in plain nets but solved by ResNets.

• A 34-layer plain net has higher training/validation error than an 18-layer plain net.
• The 34-layer ResNet has lower training/validation error than the 18-layer ResNet, demonstrating successful optimization from increased depth.

Comparison of Shortcut Types (for 34-layer ResNet):

All residual variants significantly outperform the plain network. Identity shortcuts (Option A/B) are sufficient and preferred for parameter efficiency.

Single-Model Results on ImageNet Validation:

ResNets achieve higher accuracy with increased depth. The 152-layer ResNet outperforms all previous single models.

Ensemble Result (ILSVRC 2015 Winner):

• An ensemble of ResNets achieved a 3.57% top-5 error on the ImageNet test set, winning 1st place in classification.

CIFAR-10 Analysis

Key Finding: ResNets enable the training of extremely deep networks (over 1000 layers) on smaller datasets.

• Plain nets again show the degradation problem (higher error with more layers).
• ResNets show improved accuracy with depth up to 110 layers (6.43% error).
• A 1202-layer ResNet was successfully trained (training error < 0.1%), demonstrating no optimization difficulty, though it showed signs of overfitting (7.93% test error vs. 6.43% for 110-layer).

Analysis of Layer Responses:

• The standard deviations of layer responses (pre-activation, after BN) are smaller in ResNets than in plain nets.
• Deeper ResNets have even smaller response magnitudes.
• This supports the hypothesis that residual functions $F(x)$ are generally closer to zero, making them easier to optimize.

Object Detection on PASCAL VOC and COCO

Replacing VGG-16 with ResNet-101 as the backbone in the Faster R-CNN detector led to significant improvements, showing the generalization power of the learned representations.

PASCAL VOC 2007/2012:

MS COCO:

The 6.0% absolute increase in the primary COCO metric (mAP@[.5, .95]) represents a 28% relative improvement.

Theoretical and Practical Implications

• Theoretical: Provides a simple yet powerful reformulation (residual learning) that circumvents fundamental optimization difficulties in deep networks. It demonstrates that reformulating the problem can be more effective than developing more powerful solvers.
• Practical:
  • Enables the construction and effective training of networks that are substantially deeper than before, leading to significant accuracy gains.
  • The residual block has become a standard architectural component in modern deep learning, influencing nearly all subsequent state-of-the-art models in computer vision and beyond.
  • The success on detection and segmentation tasks shows that the benefits of extremely deep representations transfer beyond classification.
  • The method is easy to implement, adds negligible computational cost, and does not require modifying the solver.

Conclusion

The paper introduces Deep Residual Learning, a framework that eases the training of networks that are substantially deeper than those used previously. By reformulating layers to learn residual functions with reference to layer inputs via identity shortcut connections, the degradation problem is addressed. This allows networks to enjoy accuracy gains from greatly increased depth. The proposed ResNets achieved state-of-the-art results on ImageNet, COCO, and PASCAL VOC, winning multiple competitions in 2015. The analysis on CIFAR-10 demonstrates the ability to train networks with over 1000 layers. The residual learning principle is shown to be generic, effective, and widely applicable.
